stainless steel sanitary grade single seat mixproof valve

Model:
JN-MF10001

Features:

  • Size: DN40-DN100;  11/2”-4”
  • Max. Pressure: 6BAR
  • Working temperature:-10℃ to +120℃
  • Air connection size: R1/”
  • Surface: Inner RA0.5um
  • The contacted parts: SS304 or SS316L
  • Sealing: EPDM, silicone or FPM
  • Connection type: welded, threading, triclover end
  • Limit switch type: 6-36V  DC  2-3 nos NPN or PNP
  • C top: AS-I connection  24-48V AC/DC 3个PNP/NPN
  • Max travel range≤80mm
  • Less space
  • Easy maintenance
  • No dead angle
  • No contacting between drain system and products
  • The separating chamber cleaning does not occur any hydraulic-pressure
  • CIP cleaning can be done any time whenever the valve is open or close

The single seat mixproof valve is controlled by the pressed air. Normally the valve is closed. There are two small pneumatic valves in the two sides of the mixproof valve. One is detecting valve. The other is CIP valve.

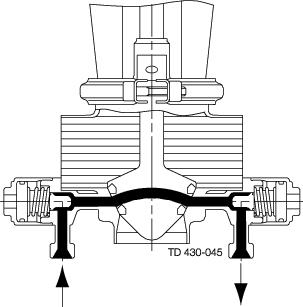

When the valve is open, please see the valve as below photo

stainless steel sanitary grade single seat mixproof valve

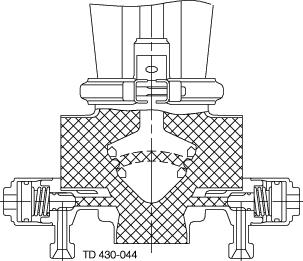

When the valve is closed,  please see the valve as below photo

stainless steel sanitary grade single seat mixproof valve

Application: Food, beverage, dairy, pharmacy, chemical or any food processing industries

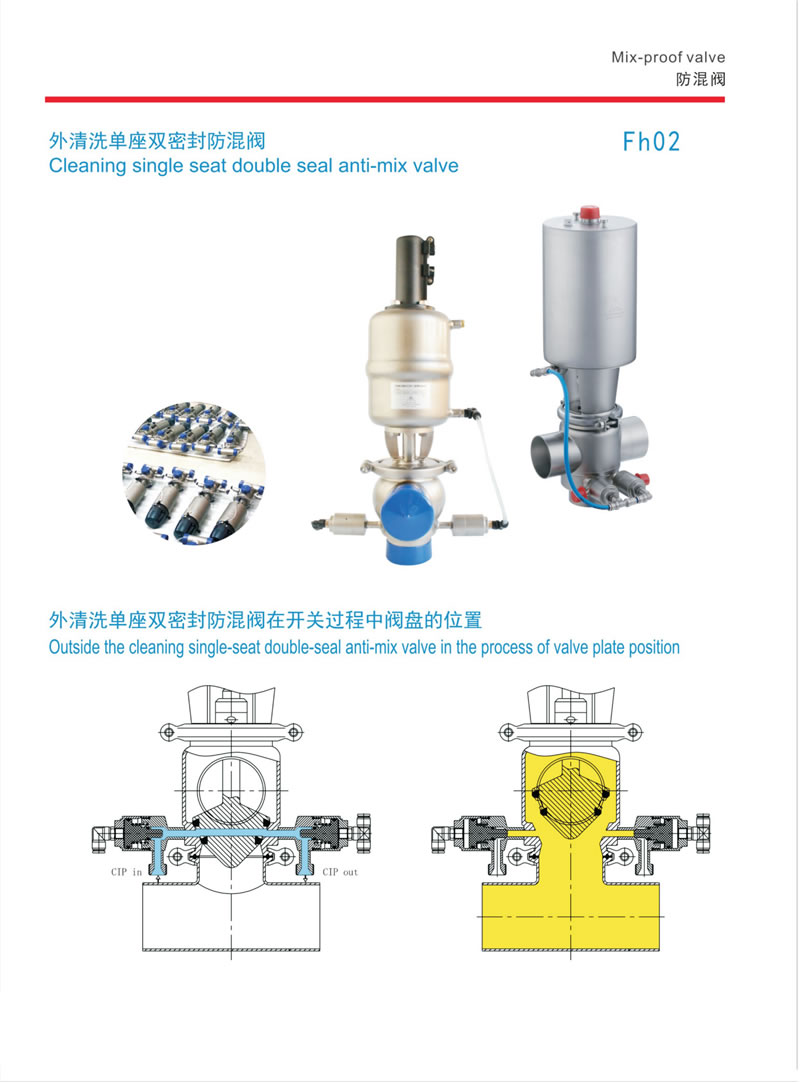

stainless steel sanitary grade single seat mixproof valve

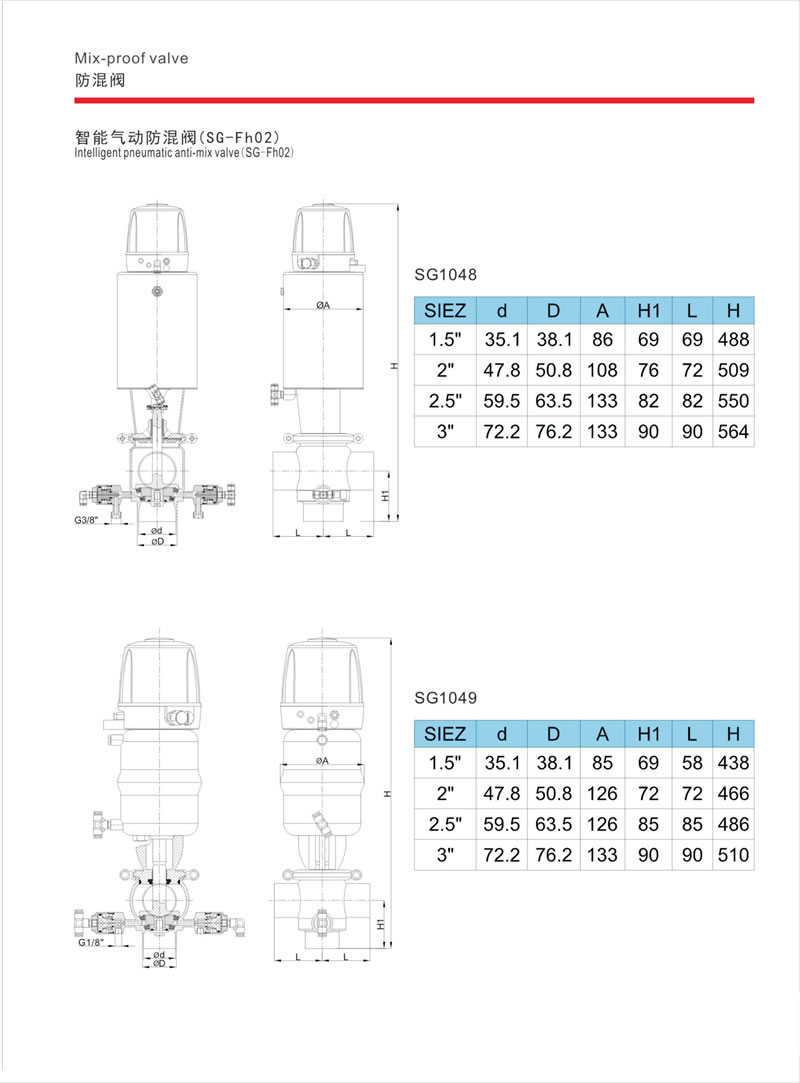

stainless steel sanitary grade single seat mixproof valve
