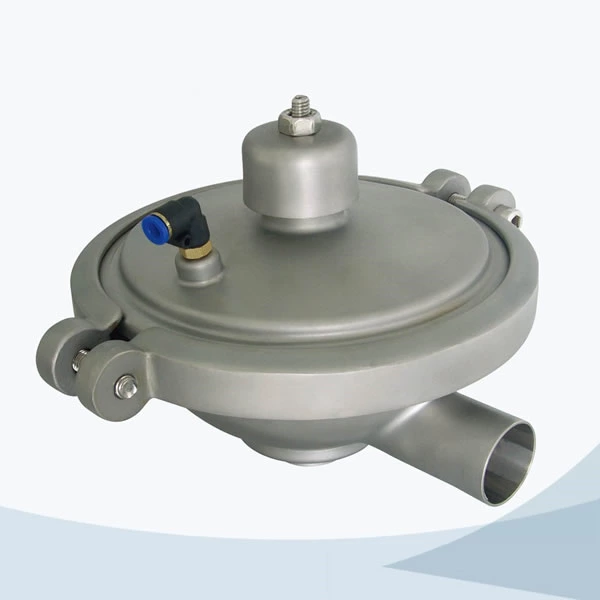

stainless steel hygienic grade constant pressure modulating CPM valve

Model:
JN-CPM1001
Code:
8481804090
Contact Now
stainless steel hygienic grade constant pressure modulating CPM valve
hygienic grade CPM valve
Stainless steel CPM valve
sanitary CPM valve
food processing CPM valve
sanitary grade CPM valve Manufacturer
Supplier

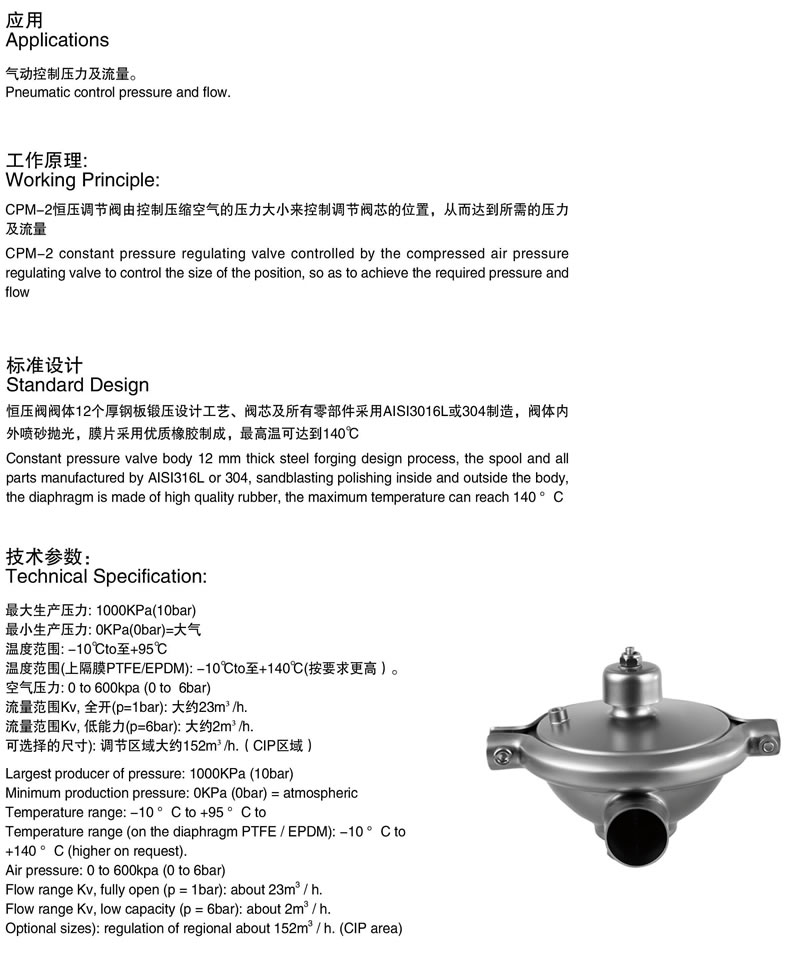

The CPM valve is used to keep the system in safe pressure. So to avoid of any leaking and explosion problems.

Features:

  • Ideal fluidity
  • Easy cleanability
  • Simple operation , easy repairment and maintainance
  • The pressure is adjustable
  • Temperature range: -10degree~~95degree

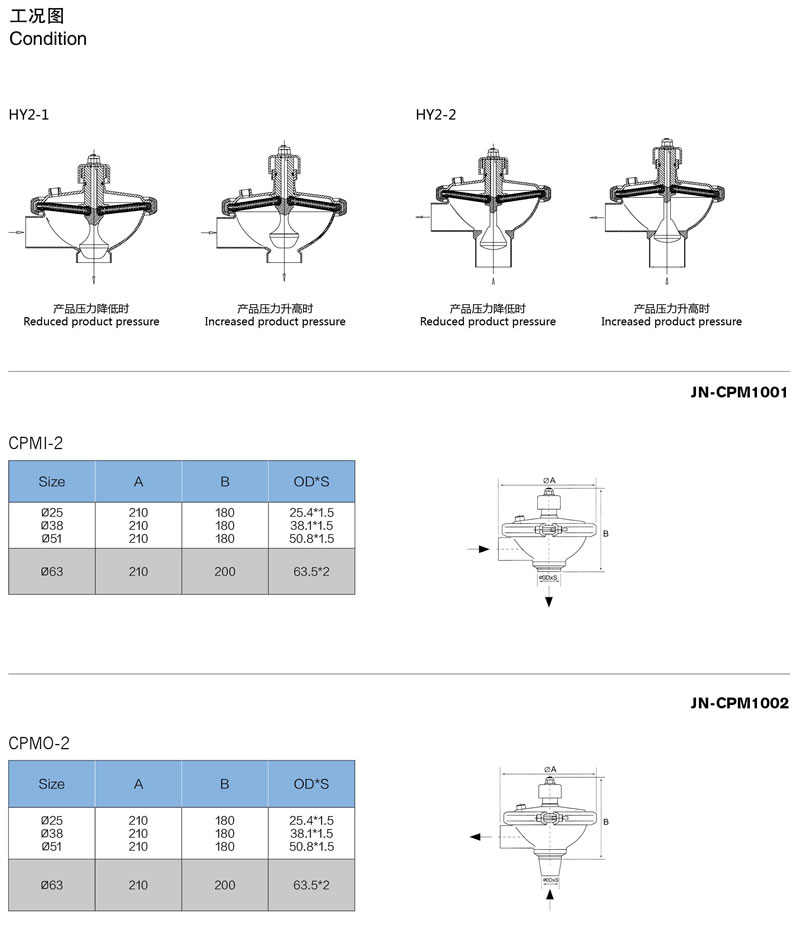

  • Two type: CPMI-2 or CPMO-2 type
  • Valve body is made from 12mm steel plate.
  • Gasket is imported material EPDM/PTFE, which is very very good quality.
  • Max. Pressure: 10bar
  • Min. Pressure: 0Bar
  • Flow Kv, fully open,(p=1ar): Approx 23m3/h
  • Flow Kv, low capacity (p=1bar): Approx 2m3/h
  • Connection end: welded,clamped
  • Size: 1"-2.5", DN25-DN65
  • Material: SS304, SS316L
  • Surface finish: Sand blasting type
  • Application: Food, beverage, dairy, pharmacy, chemical or any food processing industries
