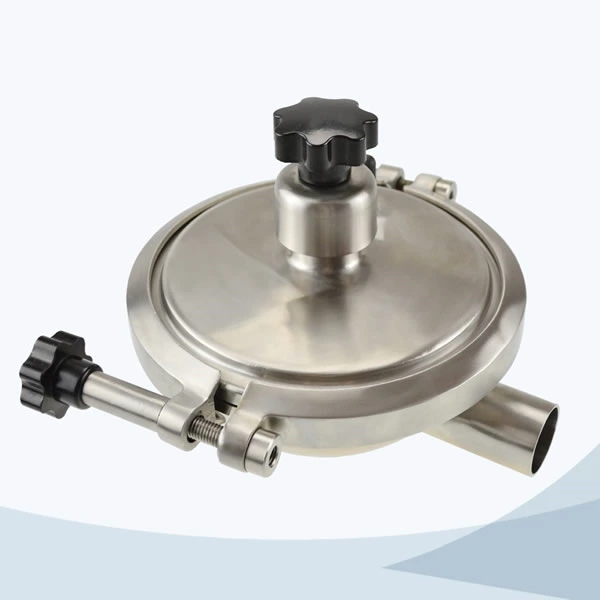

stainless steel sanitary grade constant pressure regulating CPM valve

Model:
JN-CPM1001
Code:
8481804090

The CPM valve is used to keep the system in safe pressure. So to avoid of any leaking and explosion problems.

Features:

  • Ideal fluidity
  • Easy cleanability
  • Simple operation , easy repairment and maintainance
  • The pressure is adjustable
  • Temperature range: -10degree~~95degree

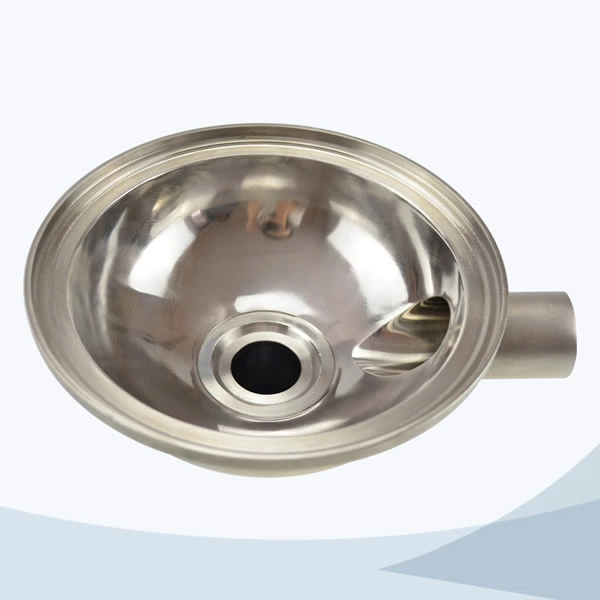

  • Two type: CPMI-2 or CPMO-2 type
  • Valve body is made from 12mm steel plate.
  • Gasket is imported material EPDM/PTFE, which is very very good quality.
  • Max. Pressure: 10bar
  • Min. Pressure: 0Bar
  • Flow Kv, fully open,(p=1ar): Approx 23m3/h
  • Flow Kv, low capacity (p=1bar): Approx 2m3/h
  • Connection end: welded,clamped
  • Size: 1"-2.5", DN25-DN65
  • Material: SS304, SS316L
  • Surface finish: Sand blasting type
  • Application: Food, beverage, dairy, pharmacy, chemical or any food processing industries

stainless steel sanitary grade constant pressure regulating CPM valve

stainless steel sanitary grade constant pressure regulating CPM valve

stainless steel sanitary grade constant pressure regulating CPM valve
