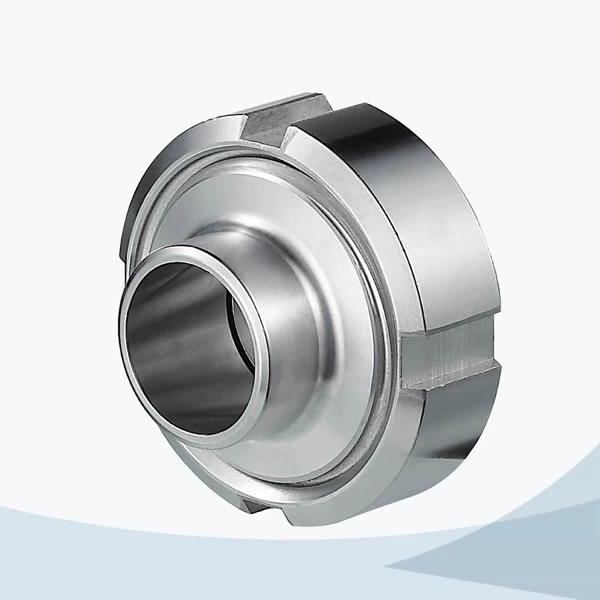

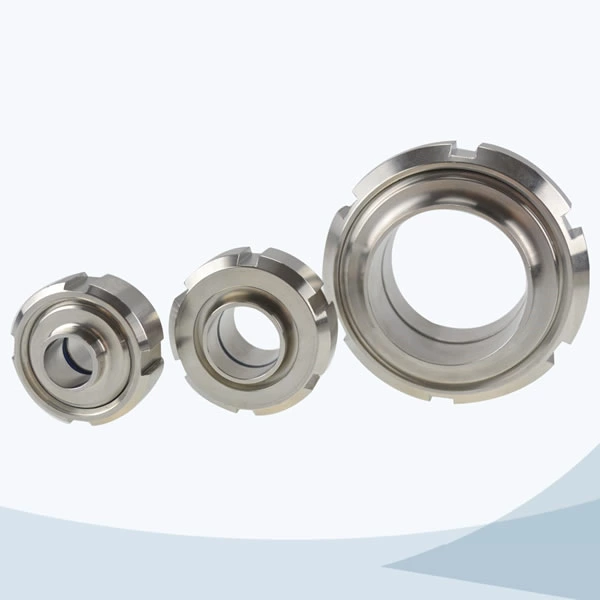

stainless steel hygienic 13R SMS long type complete union

Model:
JN-UN3001
Code:
730729000

SMS union is as per Swedish Manufacturing standard. SMS union is the most popular standard in the world.

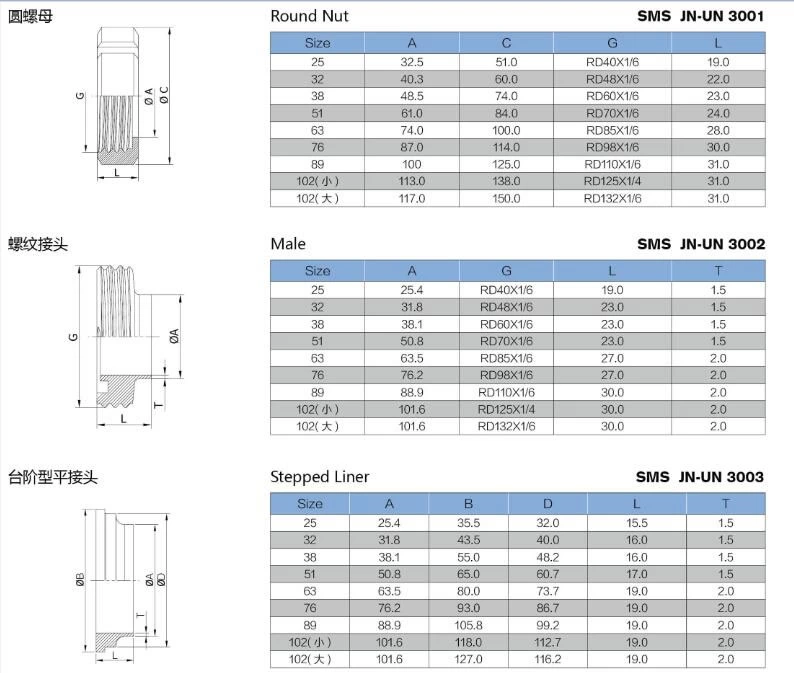

The SMS union includes SMS round nut SMS-13R, SMS weld male SMS-15, SMS liner SMS-14 and square joint ring seal.

The long type, short type and expanding type SMS unions are available.

It is ecnomic, smooth and crevice-free.

Made from forging

Machined by high precise CNC machine

After machining, the inside Ra 0.5

Standard: DIN, SMS, ISO, 3A, BPE, IDF, AS, BS,RJT

Size: DN10-300, 1/2”-10”

Material: SS304, SS316L

Gasket: EPDM, SILICONE, PFTE, NBR

Surface finish: Non polishing, the raw surface after machining

Roundness, thickness equality and Ra value to meet international food grade standard

Application: Food, beverage, dairy, pharmacy, chemical or any food processing industries

stainless steel hygienic 13R SMS long type complete union
