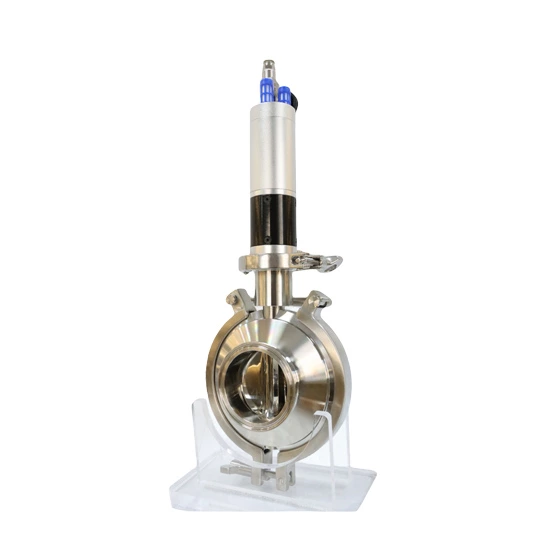

Stainless Steel Sanitary Resistant Rotary Tablet Dosing Butterfly Valve JN- SDV 23 1001

Features: Material: SS304, SS316L Size: 2”-10” Standard: 3A, SMS, ISO, DIN Max pressure: up to 10 bar Working temperature: -25℃ to 200℃ End connection: welded, threaded, clamped Seals: EPDM, PTFE, Vit

Model:
JN- SDV 23 1001

Features:

  • Material: SS304, SS316L
  • Size: 2”-10”
  • Standard: 3A, SMS, ISO, DIN
  • Max pressure: up to 10 bar
  • Working temperature: -25℃ to 200℃
  • End connection: welded, threaded, clamped
  • Seals: EPDM, PTFE, Viton, silicone
  • Operated: manual, pneumatic
  • Internal surface finish: Ra0.8 um
  • External surface finish: Ra0.6 um
  • Precise flow control
  • Light weight
  • Sanitary design
  • Minimized material clogging
  • Ease of maintenance and cleaning
  • Durability and versatility
  • Improved process efficiency
  • Environmental friendly

The working principle of a star discharge valve involves the controlled rotation of a star-shaped rotor within a valve housing. This rotation creates openings or channels through which bulk material can flow, allowing for precise regulation of the discharge rate.
