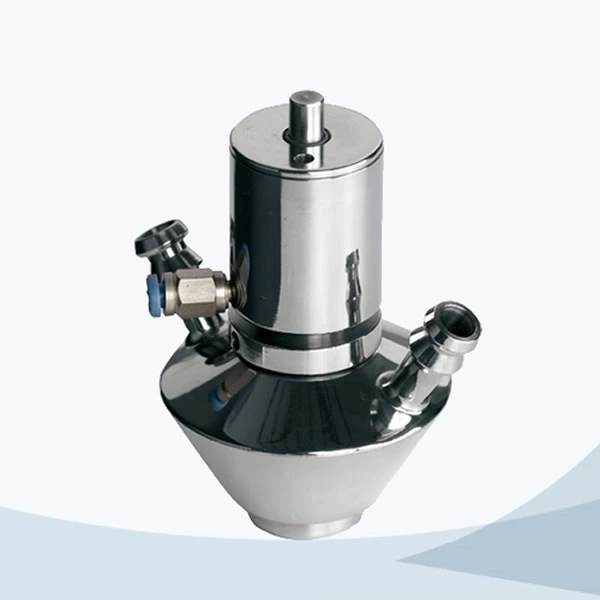

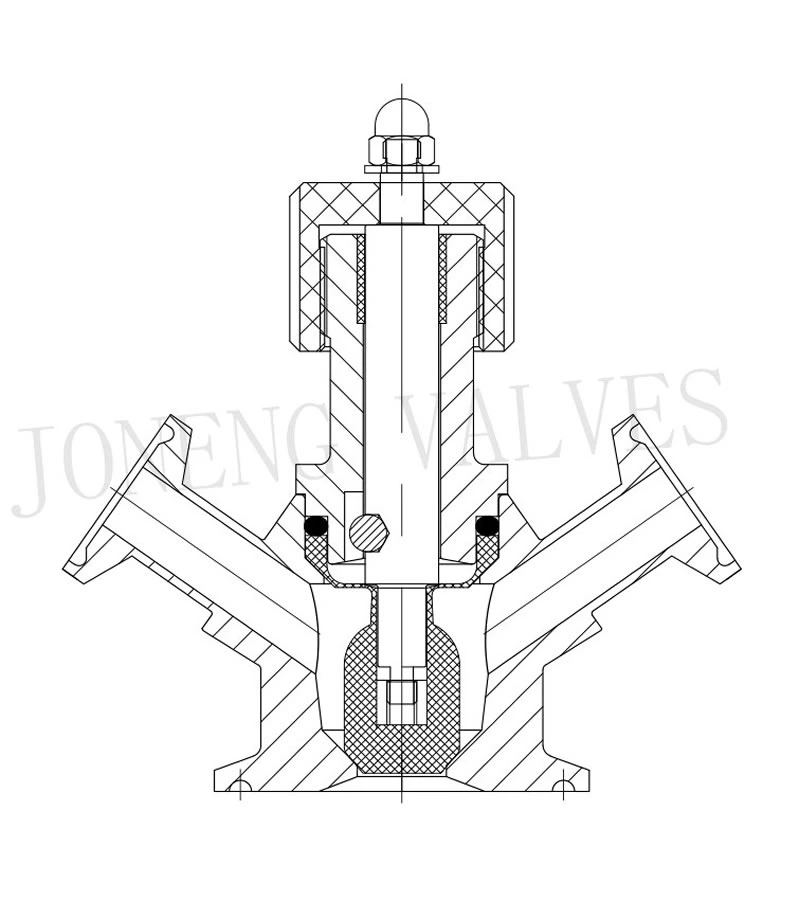

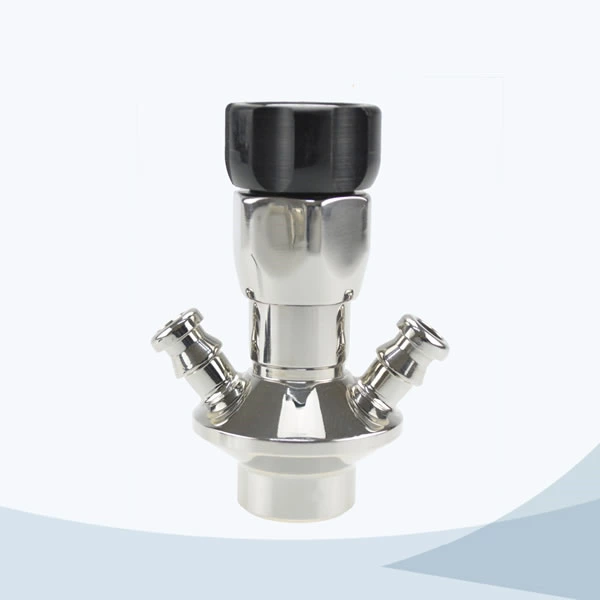

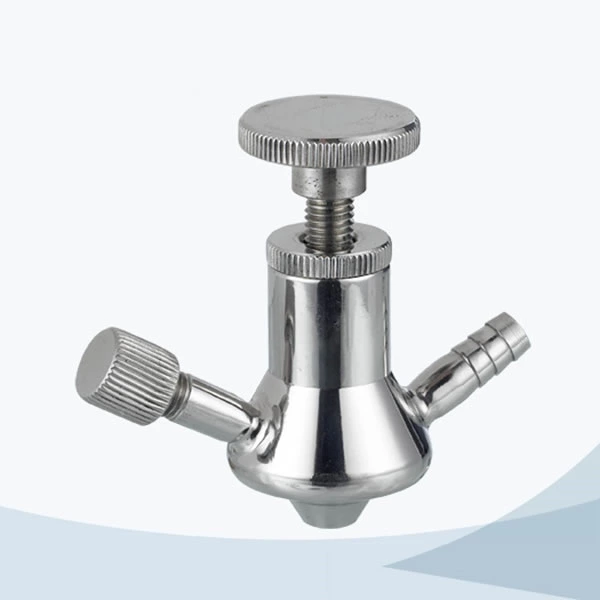

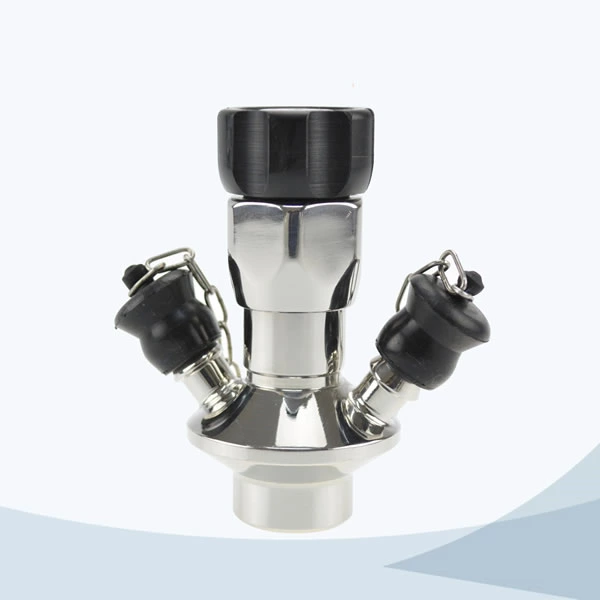

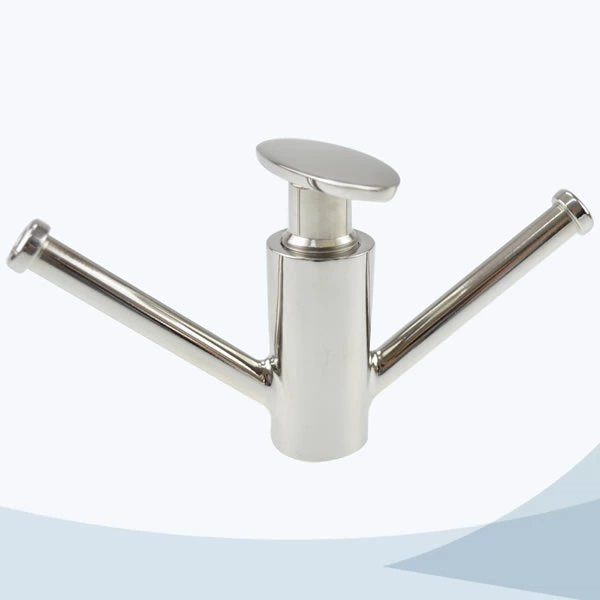

stainless steel hygienic grade diaphragm sampling cock valve

Model:
JN-SPV1017
Code:
8481804090

The valve is used to get sampling liquid to inspect the liquid inside the system.

Features:

  • Long service life
  • Easy to sterilize
  • Sampling work can be done any time during production, no need to stop production.
  • Sterilization by alcohol or steam
  • Material sealed by diaphragm directly
  • No second -time contamination, bulk or mini sample allowed
  • Inside surface :Ra0.5um
  • Outside surface0.8um
  • High precise casting body
  • Pressure: 10bar
  • Temperature: -60~ 180 degree
  • Working mode: Manual type, pneumatic type
  • Aseptic type, normal type
  • Gaskets: PTFE, EPDM or Silicone
  • Easy cleaning, easy maintenance
  • Connection end: Weld, tri-clamped
  • Standard: DIN, 3A
  • Material: SS304, SS316L
  • Inside surface finish: Ra0.4
  • Size: 1/4”, 1/2”, 1”
  • Application: Food, beverage, dairy, pharmacy, chemical or any food processing industries

stainless steel hygienic grade diaphragm sampling cock valve

stainless steel hygienic grade diaphragm sampling cock valve

stainless steel hygienic grade diaphragm sampling cock valve
