stainless steel food grade pressure release valve

Model:
JN-SV1004
Code:
8481804090
Contact Now
stainless steel food grade pressure release valve
sanitary pressure release valve
stainless steel sanitary pressure release valve
hygienic pressure release valve
food grade pressure release valve

The safety valve is used to used to keep the set pressure in the system. When the system pressure is higher than set pressure, valve open to reduce the pressure.

Before the valve is dispatched, we have set the pressure to given pressure. The valve is closed.
If needed, we can install a pressure gauge before the inlet of safety valve.

Features:

  • Simple structure
  • Attractive appearance
  • Quick pressure adjustment
  • Convenient maintainance
  • Adjustable pressure range
  • The valves can not be installed in reversal direction

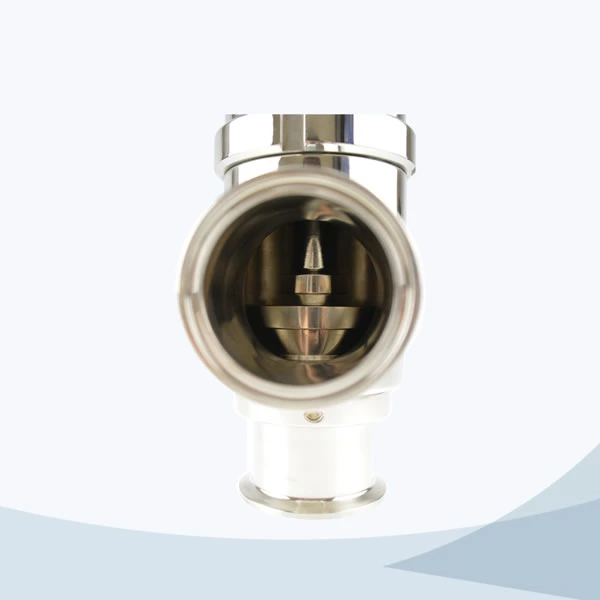

  • Models: Ball type, line type
  • Max. Pressure: 10bar
  • Min. Pressure: 0Bar
  • Adjusting pressure: 0.5bar/unit
  • Connection end: welded,clamped , threaded, union type

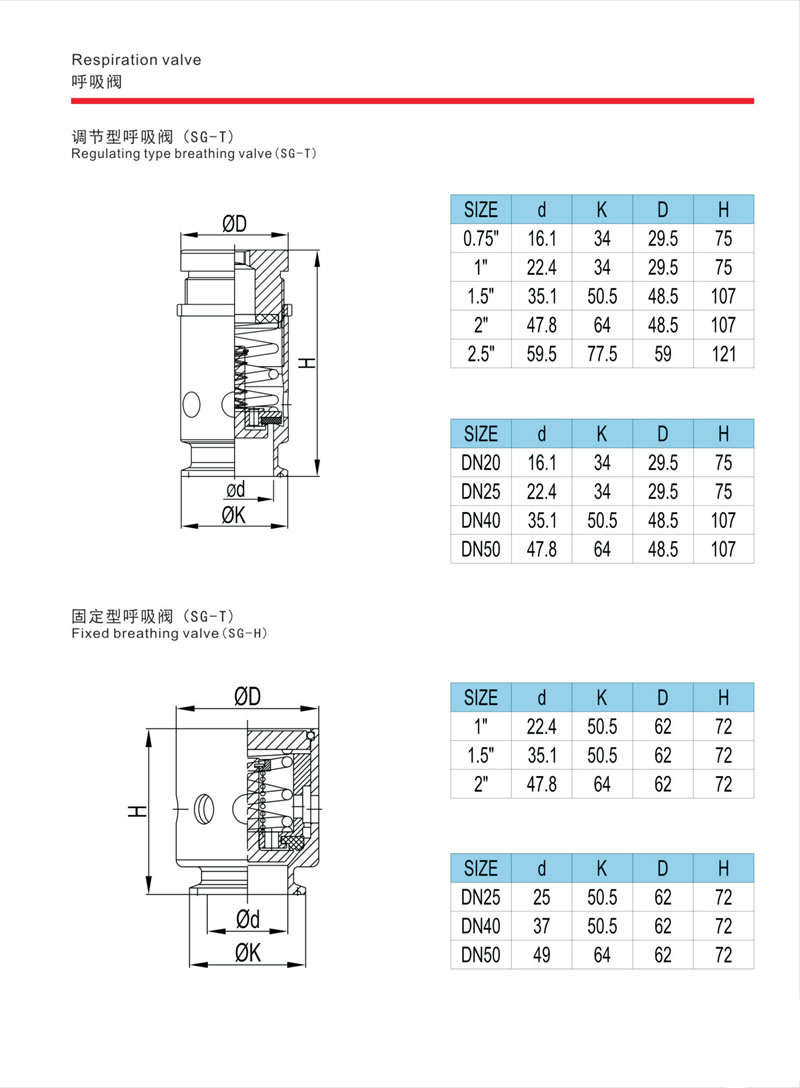

  • Size: 1”-2”, DN25-DN50
  • Material: SS304, SS316L
  • Surface finish: Sand blasting type, or mirror type
  • Application: Food, beverage, dairy, pharmacy, chemical or any food processing industries
