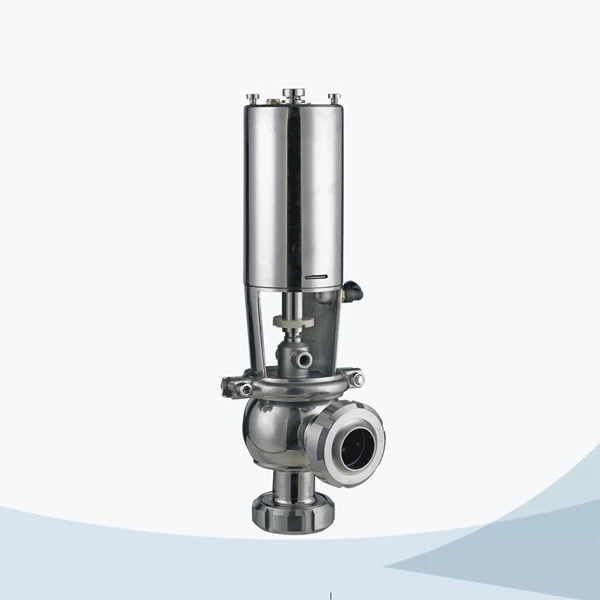

stainless steel food equipment pneumatic cut-off valve

Model:
JN-FDV1004
Code:
8481804090

The valve is used to stop the liquid or change the flow direction in the system.

Features:

  • Open support bracket which separates the actuator and valve body, the design makes shaft seal checking easily
  • Spherical valve body assures ideal fluidity
  • Dealing material softly
  • Ultra-thick spherical design avoid the deshape caused from heating stress
  • All the contacting parts can be cleaned together or alone
  • Temperature: -10 degree to 120 degree
  • High precise casting body
  • Pressure: 10bar
  • Working mode: Manual, pneumatic type
  • Gasket: EPDM, silicone
  • Easy cleaning , easy maintenance
  • Valve body type: 20, 30, 21, 22, 31, 32 type
  • Connection mode: Clamped, welded, etc
  • Specification: 1"-4", DN25-DN100
  • Material quality: SUS304, SUS316L
  • Surface: Mirror polishing, or sand blasting type
  • inner surface: 0.4Ra
  • Outer surface : 0.8Ra
  • Application: Food, beverage, dairy, pharmacy, chemical or any food processing industries

stainless steel food equipment pneumatic cut-off valve

stainless steel food equipment pneumatic cut-off valve

stainless steel food equipment pneumatic cut-off valve
