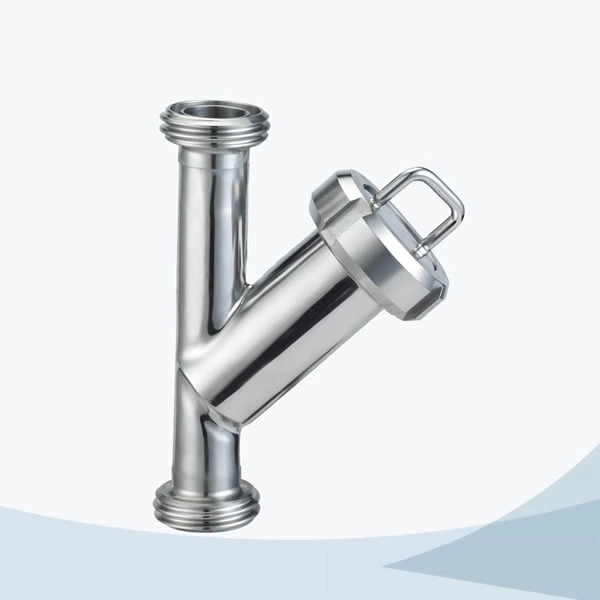

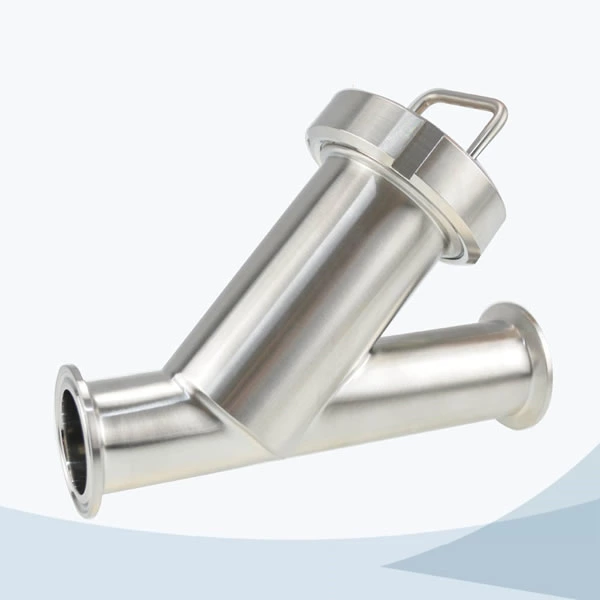

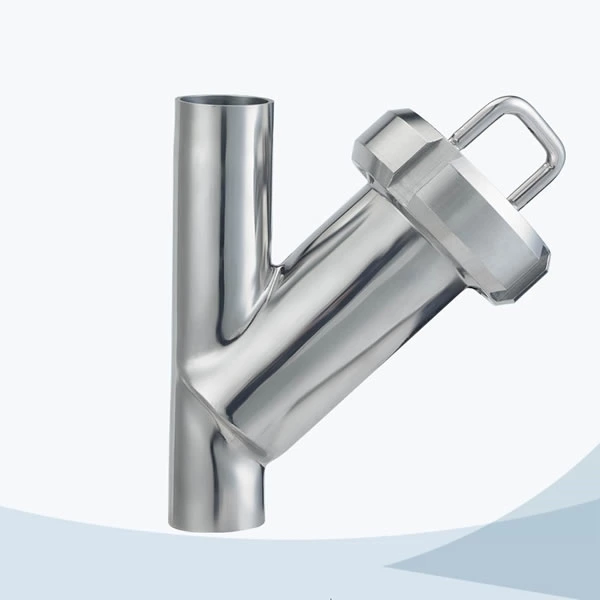

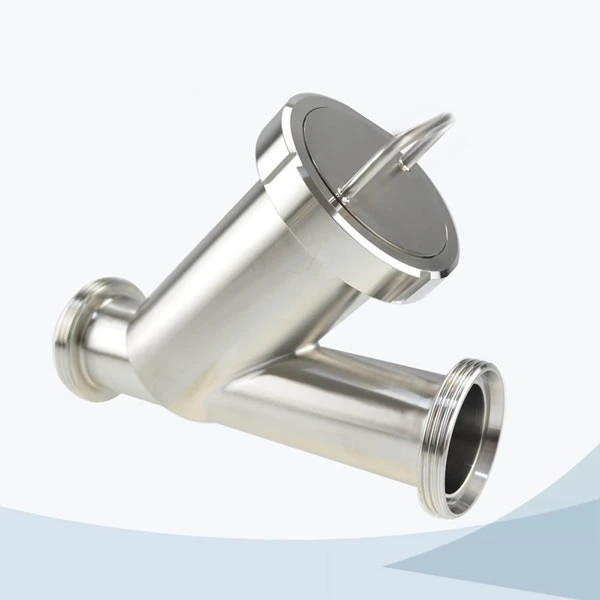

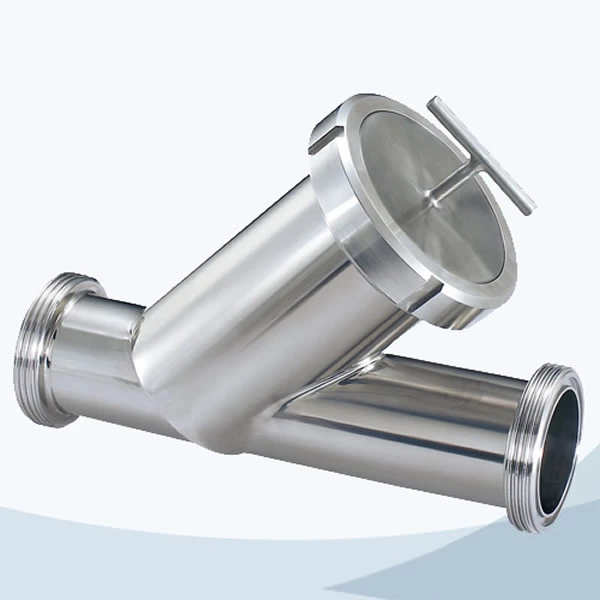

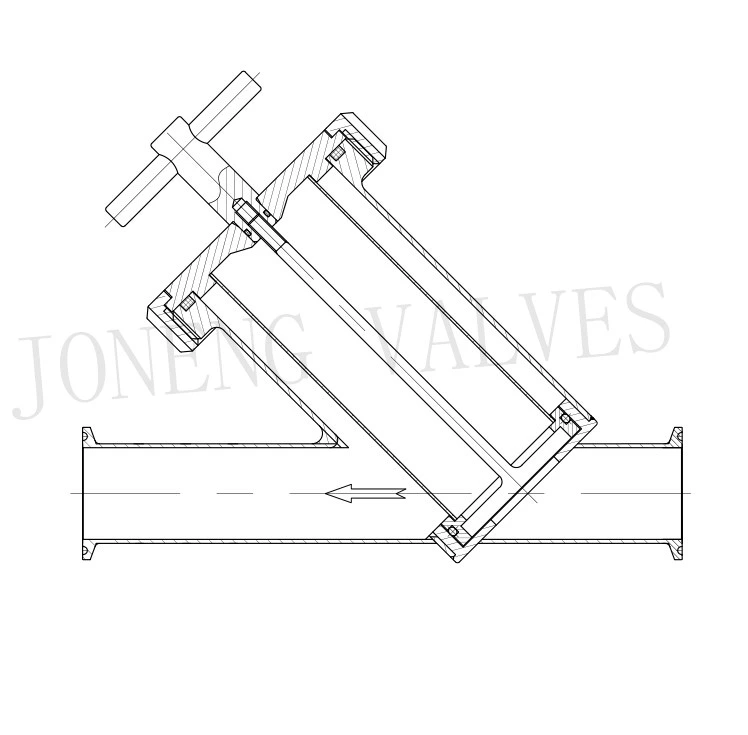

Y type Filters are used for filtering the solid particles in liquid. The inlet and outlet of the Y-type filter are in the same line. So it is widely used for pipeline. The filter housing and filter elements are separate. So we can easily clean the filter element .There is no dead angle in the Y filter, so we can clean the Y filter easily and completely.
Reasonable structure
Good filtration and sealing ability
Small pressure loss
Easy maintenance
Max operation pressure:1.0mpa
Max operation temperature: 120 C
Filtering accuracy: 0.5mm, 1mm,2mm,3mm,5mm,8mm
Max flow rate: 15T/H
Connection end: welded, tri-clamped. Threaded, union end
Filter element :30#, 40#, 60#, 80#,100#, 120#, 150#, 200#, 240#, 260#, 300#, 320#, 360#, 400#

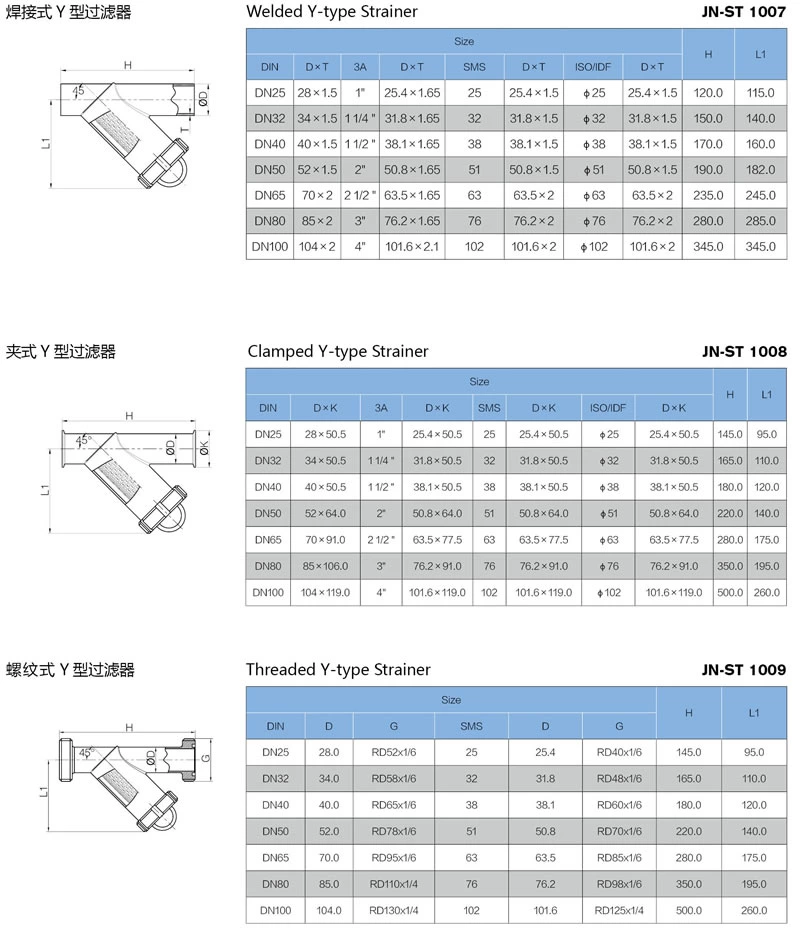

Size: 1”-4”
Material: SS304, SS316L
Inside Ra: 0.4um
Outside surface Ra:0.8um
Seal: EPDM, silicone,
Application: Food, beverage, dairy, pharmacy, chemical or any food processing industries
