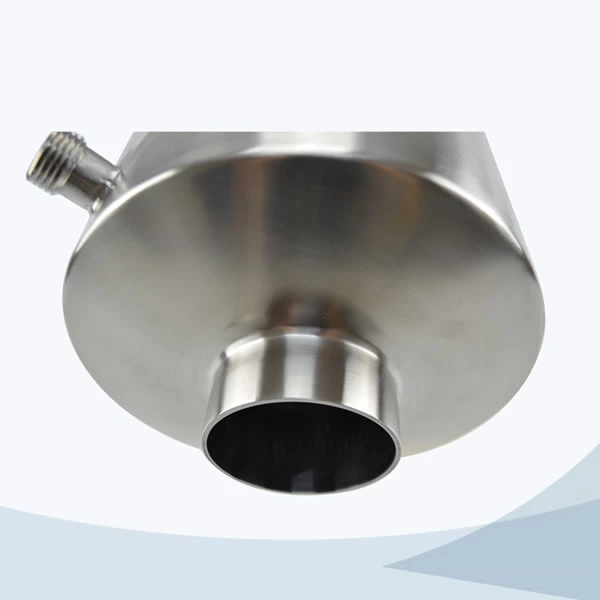

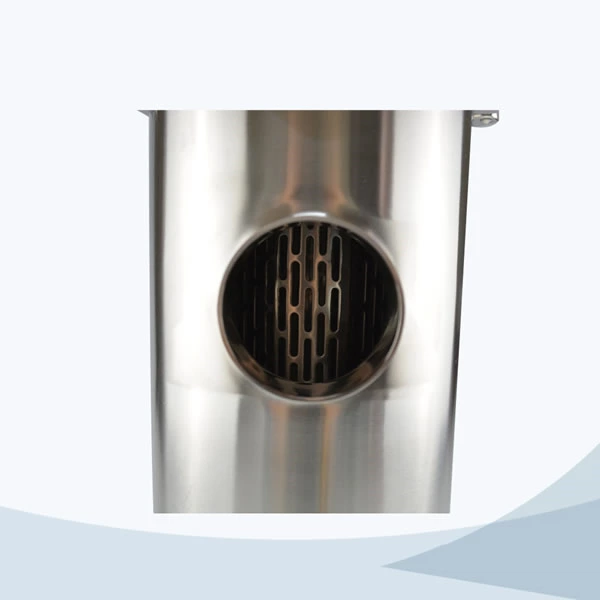

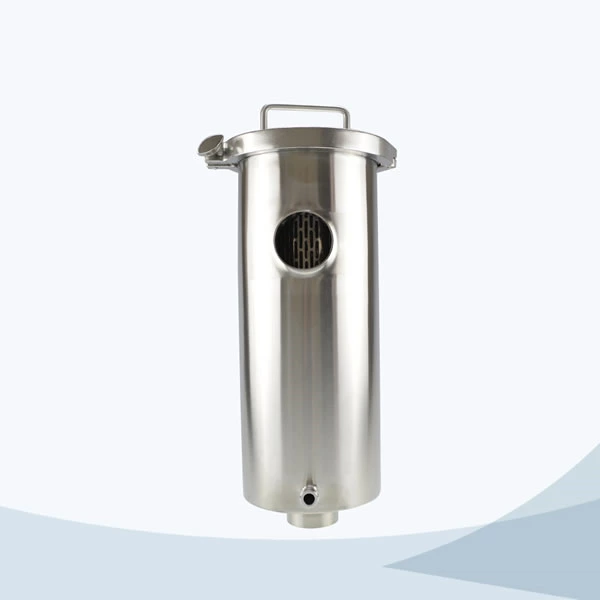

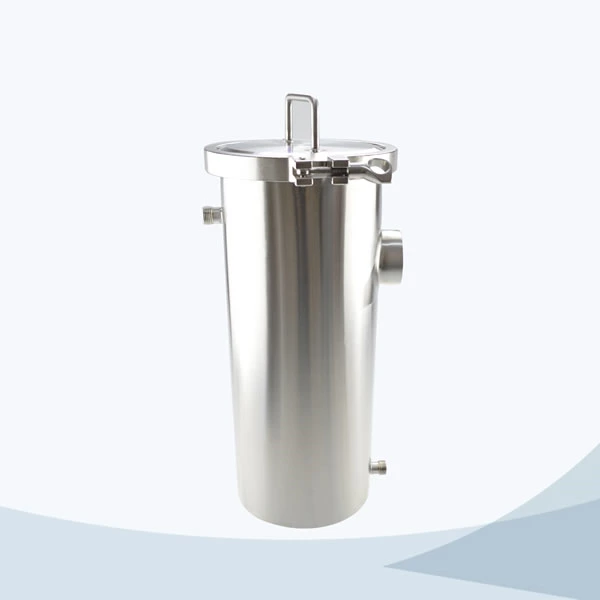

stainless steel food processing jacket type strainer


Angle type Filters are used for filtering the solid particles in liquid. The inlet and outlet of Angle type filters are 90 degree. The filter housing and filter element are seperate. We can easily dis-assembly the filter element from housing so it is easy to clean the element.

Reasonable structure

Good filtration and sealing ability

Small pressure loss

Easy maintenance

Max operation pressure:1.0mpa

Max operation temperature: 120 C

Filtering accuracy: 0.5mm, 1mm,2mm,3mm,5mm,8mm

Max flow rate: 15T/H

Connection end: welded, tri-clamped. Threaded, union end

Filter element :30#, 40#, 60#, 80#,100#, 120#, 150#, 200#, 240#, 260#, 300#, 320#, 360#, 400#

Size: 1”-4”

Material: SS304, SS316L

Inside Ra: 0.4um

Outside surface Ra:0.8um

Seal: EPDM, silicone,

Application: Food, beverage, dairy, pharmacy, chemical or any food processing industries
