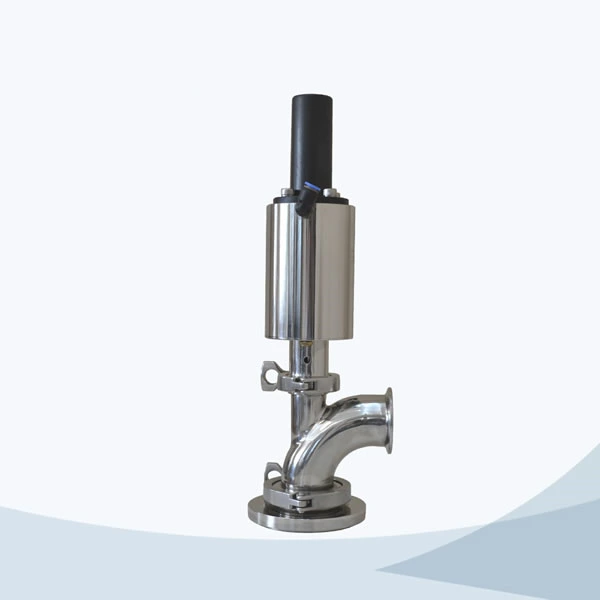

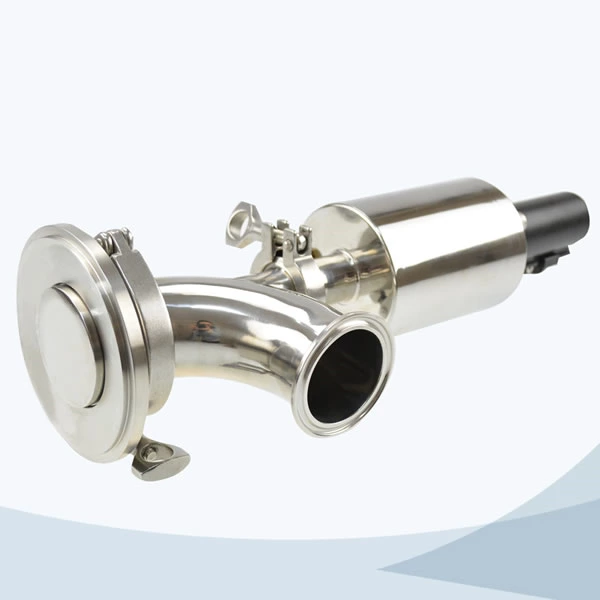

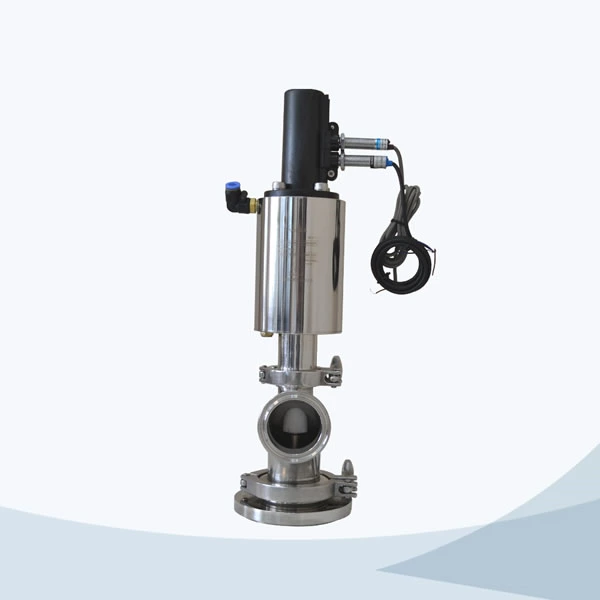

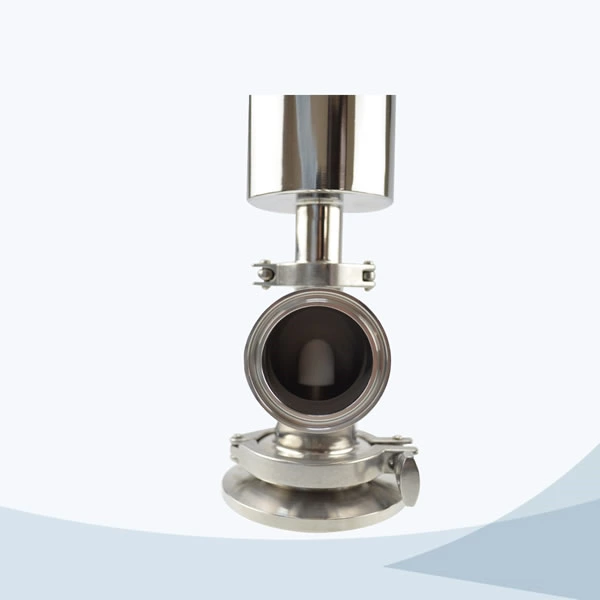

stainless steel sanitary grade pneumatic bending type tank bottom valve

Model:
JN -DV1015
Code:
8481804090

The diaphragm valve is widely used for pharmaceutical industries. This valve is widely used for controlling flow rate.

Features:

Aseptic design

The valves are suitable for applying in high flow rate, high corrosivity, high viscosity fluid.mooth contacting surface, non retention dead angle easy disassembly, easy maintainenance, easy to clean, CIP Unique diaphragm type actuator which prolong the diaphragm service life effectively.Valve body which contacts with liquid is made of SS316L. The non-contacting part is made of SS304 material.

  • Valve body type: Two way mirror type, two way sand blasting type, three way, U type, T type
  • Gasket: Silicone, EPDM, EPDM+PTFE integrated membrane , EPDM/PTFE seperate membrane
  • Integrated membrane
  • Max. Pressure: 10bar
  • Max. Temperature: -10 ~ +120 degree
  • Material quality: SS 316L
  • Inside surface finish: Ra0.4
  • Standard: DIN, SMS
  • Connection: welded, clamped, flanged,

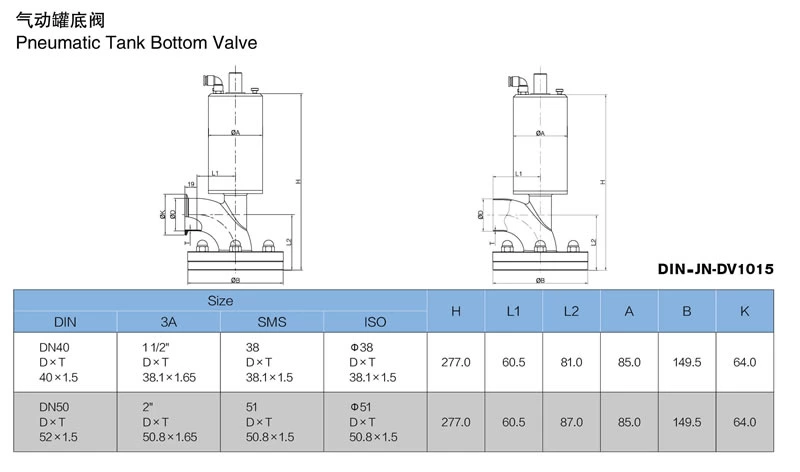

  • Size:
    • Mini type: DN6, DN8, DN10,
    • Medium type: DN15-DN50
    • Large type: DN65, DN80, DN100
  • Applications: Widely used for pharmaceutical and chemical industries

Product Description

Product Description

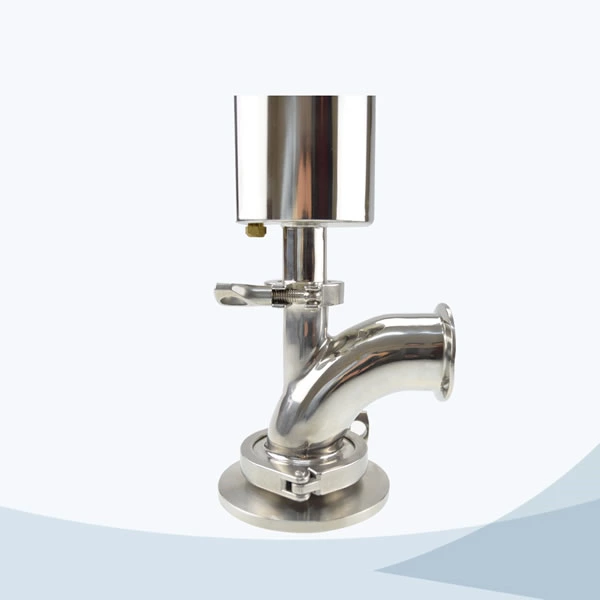

stainless steel sanitary grade pneumatic bending type tank bottom valve
