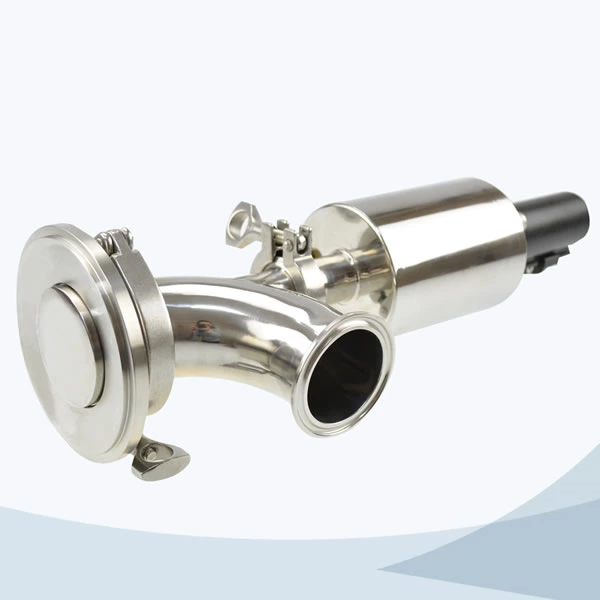

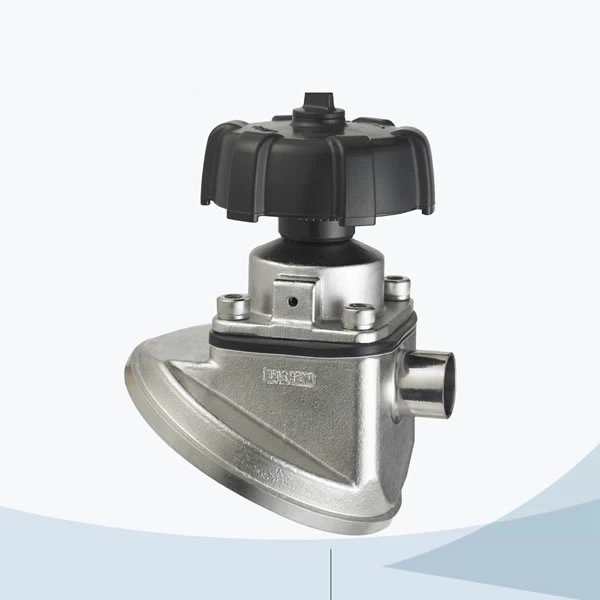

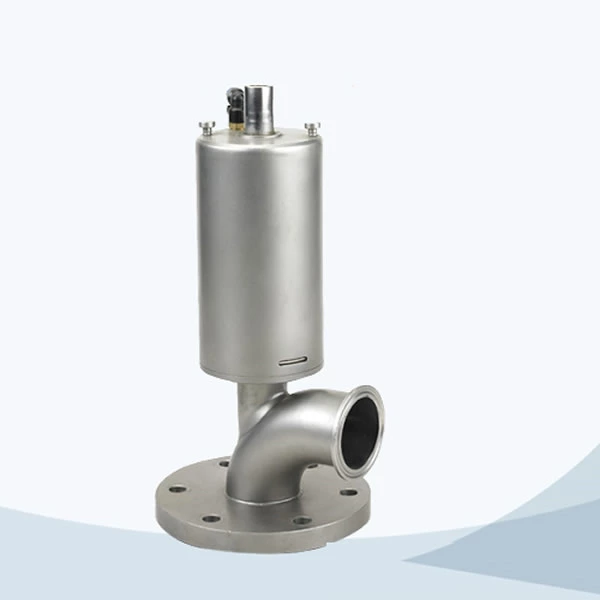

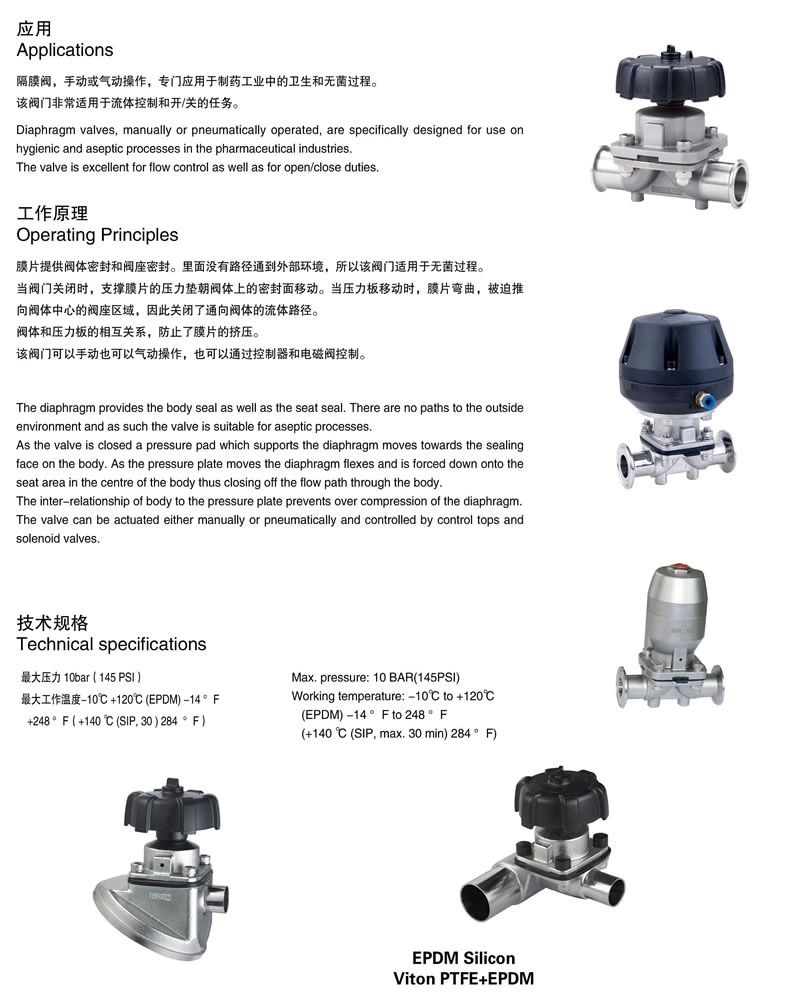

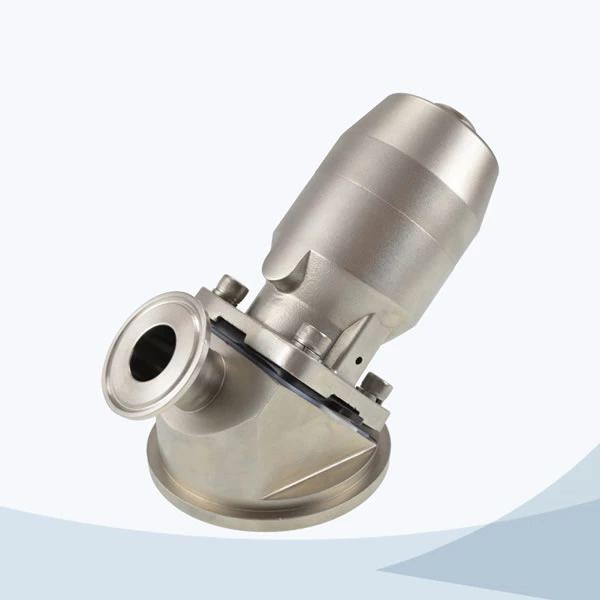

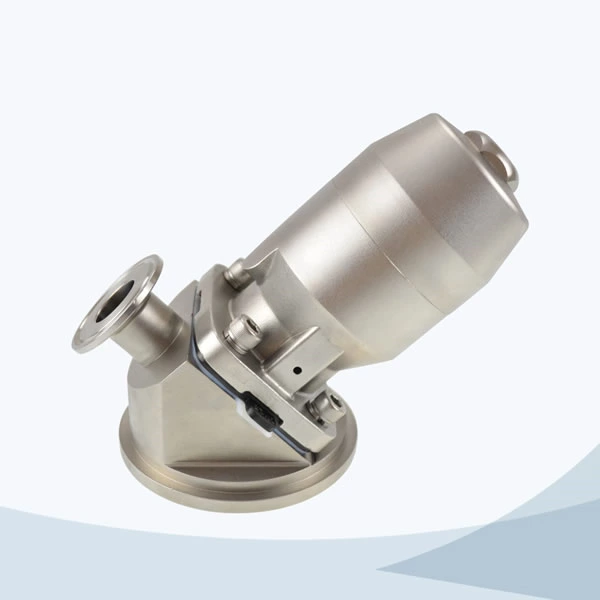

The diaphragm valve is widely used for pharmaceutical industries. This valve is widely used for draining the remaining liquid in the tank.The tank-bottom valve is easy to operate and drains completely.
Features:
- Aseptic design
- The valves are suitable for applying in high flow rate, high corrosivity, high viscosity fluid.
- Smooth contact surface, non retention dead angle
- easy disassembly, easy maintenance, easy to clean, CIP
- Unique diaphragm type actuator which prolongs the diaphragm service life effectively.Valve body which contacts with liquid is made of SS316L. The non-contacting part is made of SS304 material.

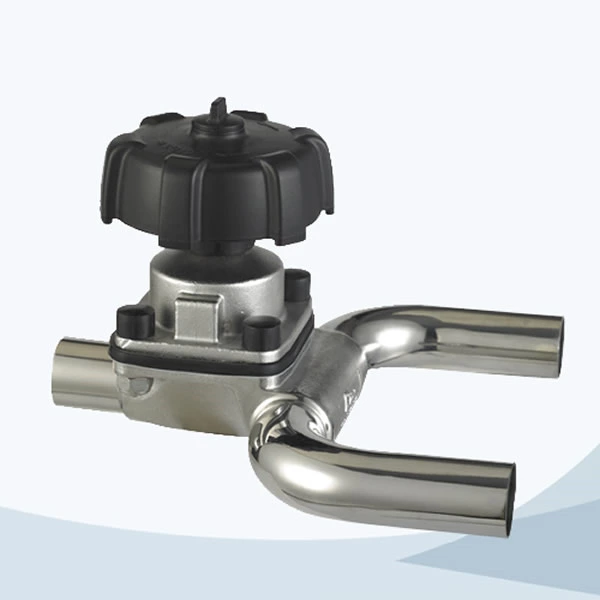

- Valve body type: T type, bending type, L type, 3 piece ball type
- Gasket: EPDM, EPDM+PTFE integrated membrane , EPDM/PTFE separate membrane
- Integrated membrane
- Max. Pressure: 10bar
- Max. Temperature: -10 ~ +120 degree
- Material quality: SS316L
- Inside surface finish: Ra0.4
- Standard: DIN, SMS
- Connection: welded, clamped, flanged,

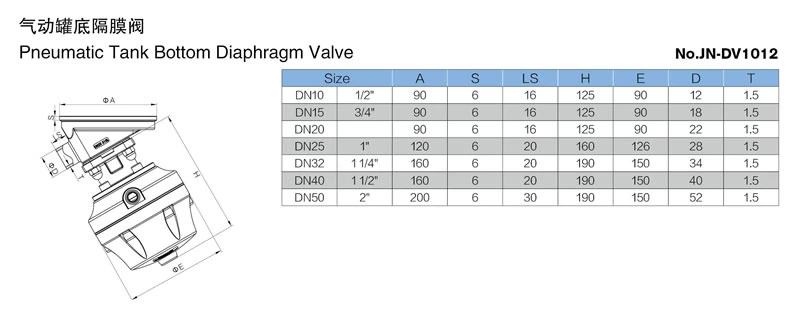

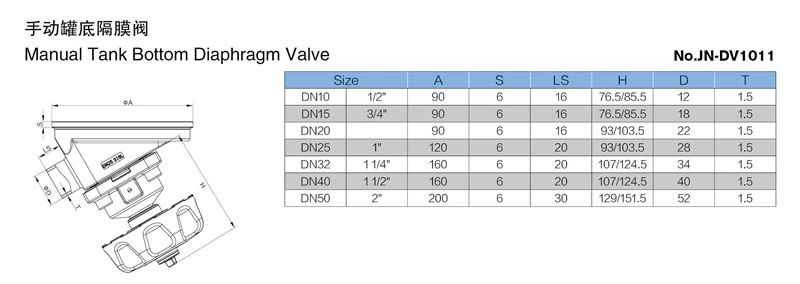

- Size: DN10-DN50
- Applications: Widely used for pharmaceutical and chemical industries
