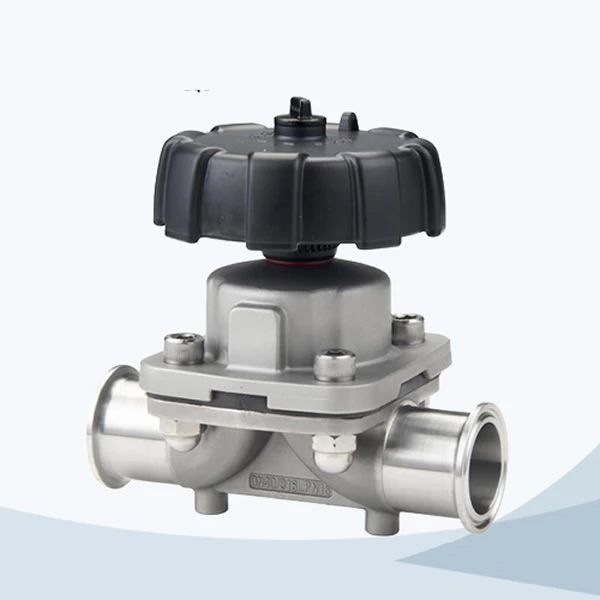

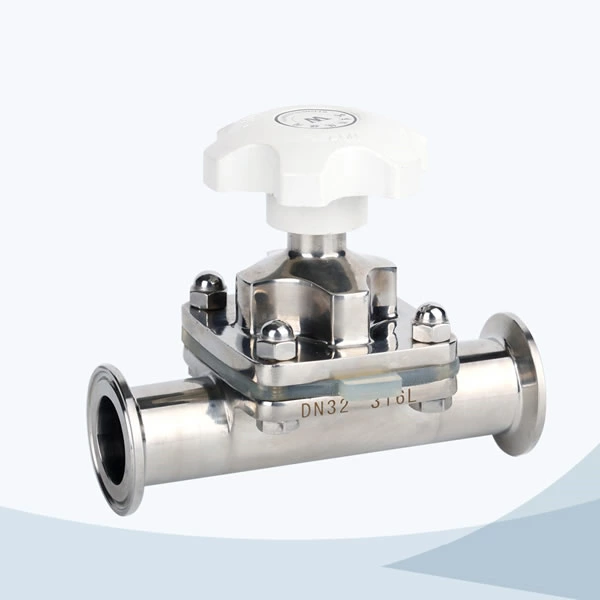

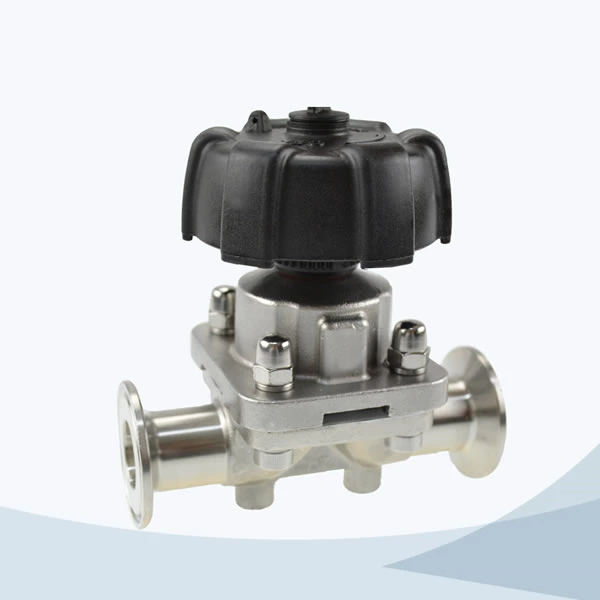

The diaphragm valve is widely used for pharmaceutical industries. This valve is widely used for controlling flow rate.
Features:
compact structure, fully-draining itself, no retention angle .forged valve body of compact intercrystalline structure, sterilize rapidly and thoroughly Integrated machining from advanced equipment, assures safety and reliability during installation

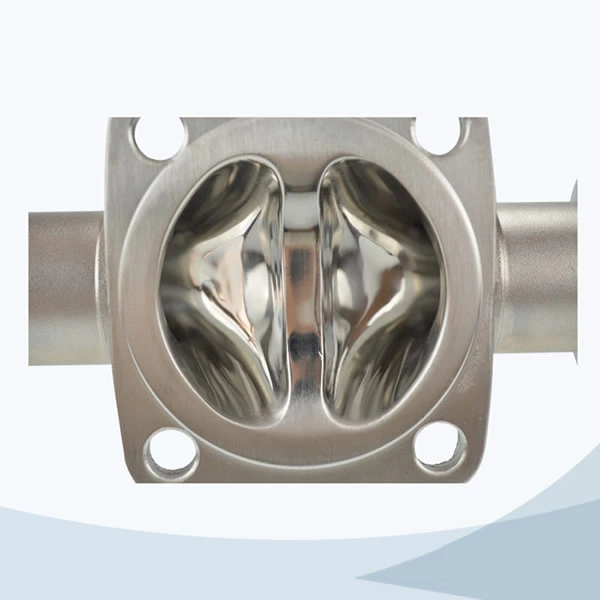

Valve body which contacts with liquid is made of SS316L. The non-contacting part is made of SS304 material.
- Valve body type: Two way mirror type, two way sand blasting type, three way, U type, T type

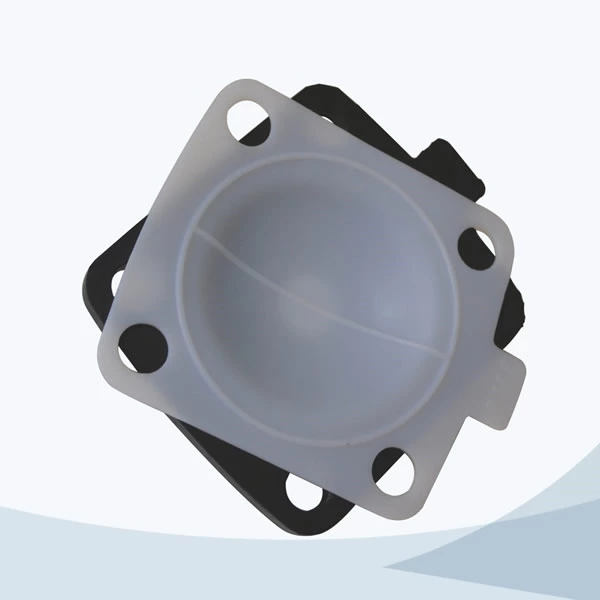

- Gasket: Silicone, EPDM, EPDM+PTFE integrated membrane , EPDM/PTFE separate membrane
- Integrated membrane
- Max. Pressure: 10bar
- Max. Temperature: -10 ~ +120 degree
- Material quality: SS 316L
- Inside surface finish: Ra0.4
- Standard: DIN, SMS
- Connection: welded, clamped, flanged,
- Size:
- Mini type: DN6, DN8, DN10,
- Medium type: DN15-DN50
- Large type: DN65, DN80, DN100
- Applications: Widely used for pharmaceutical and chemical industries
