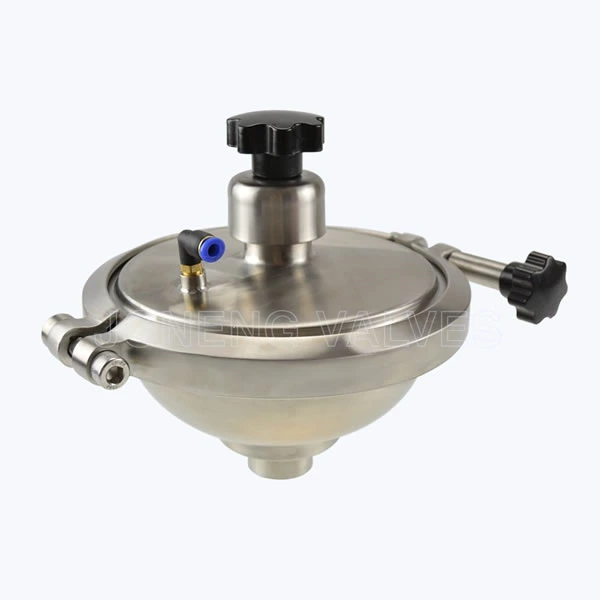

Stainless steel hygienic grade CPM valve

Model:
JN-CPM1002
Code:
8481804090

The CPM valve is used to keep the system in safe pressure. So to avoid of any leaking and explosion problems.

Features:

  • Ideal fluidity
  • Easy cleanability
  • Simple operation , easy repairment and maintainance
  • The pressure is adjustable
  • Temperature range: -10degree~~95degree
  • Two type: CPMI-2 or CPMO-2 type
  • Valve body is made from 12mm steel plate.
  • Service kit is imported material EPDM/PTFE, which is very very good quality. Nitrile upper and telfon covered EPDM for down parts
  • Max. Pressure: 10bar
  • Min. Pressure: 0Bar
  • Flow Kv, fully open,(p=1ar): Approx 23m3/h
  • Flow Kv, low capacity (p=1bar): Approx 2m3/h
  • CPMI-2 valve is to keep inlet pressure constant which are mostly used after separators or heat exchangers

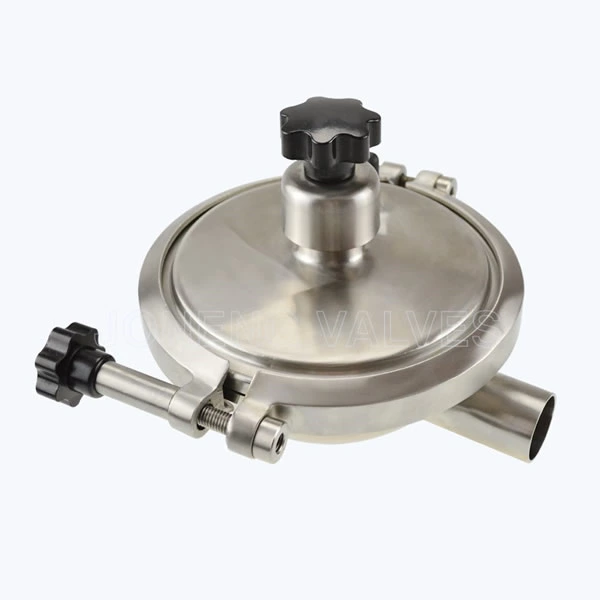

  • CPM0-2 valve is to keep outlet pressure constant which are mostly used before filling or bottle machines
  • Uniform inlet or outlet pressure
  • Fast response
  • Double diaphragm to ensure better performance
  • Tangential inlet for complete self-draining
  • Kv 23 plug to cover a wide range of low capacities
  • Connection end: welded,clamped
  • Size: 1”-2.5”, DN25-DN65
  • Material: SS304, SS316L
  • Surface finish: Sand blasting type
  • Application: sterilization, filling, bottling, filter, heat exchanging system in Food, beverage, dairy, pharmacy, chemical or any food processing industries

Stainless steel hygienic grade CPM valve

Stainless steel hygienic grade CPM valve

Stainless steel hygienic grade CPM valve
