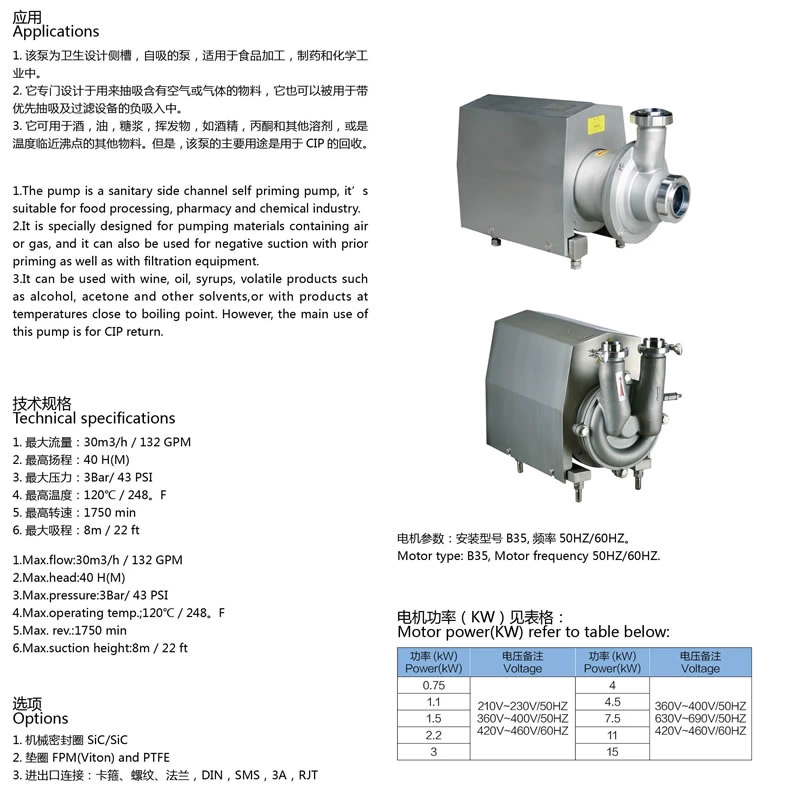

Mainly used to deliver the liquid containing a part of gas in the fields such as pharmaceutical, alcohol ,food ,chemicals ,beverages etc. and also used as return pump in on -the spot CIP cleaning system , and used for liquid delivery that need high pressure filter .
- Optimized internal geometric structure helps to reduce loss.
- Advanced seal design.
- Adopting the sideway principle.
- Outstanding self-pumping ability.
- Perfect sanitary property and cleanability.
- Cost effective maintenance.
- Low power consumption, low noise
- All the part contact with medium are made of AISI316L stainless steel.
- Other parts:AISI304 stainless steel
- The sealing contact with medium:EPDM
- Wiredrawing Surface treatment or Sand blast treatment
- According to the configuration ,we adopt three phase"ABB"brand AC motor. The motor design according to the International Eltronical Commission IEC 60034.IEC60072,and comply with the EC requirements of "CE"marking requirement .
- The explosion-proof motor also available ,that can meet with the requirement of different applications .
- It with excellent electric performance ,and with low niose,low vibration,the protection grade is IP55,insulation grade is F.
- The operate involtage
- >3Kw,380-420V/660-690V, /Y
- Frequency 50Hz/60Hz
- Operate way :continously
- Running Speed : 2900r/min

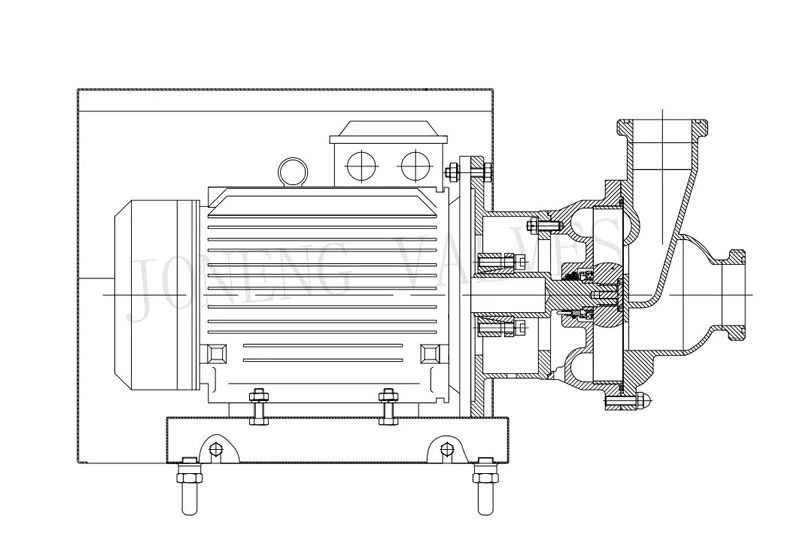

The self priming pump is use to pump the liquid which level is low The pump shell , cover and vane are made of high-grade stainless steel 304 or 316L;the motor is equipped with stainless steel shield, inner surface adopts mirror polishing ,Ra0.28um,:outer casing adopts wiredrawing treatment ,completely accorded to GMP standard .
