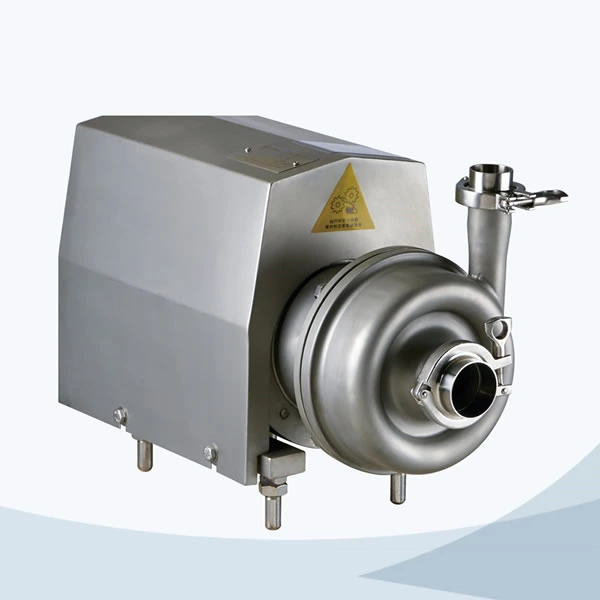

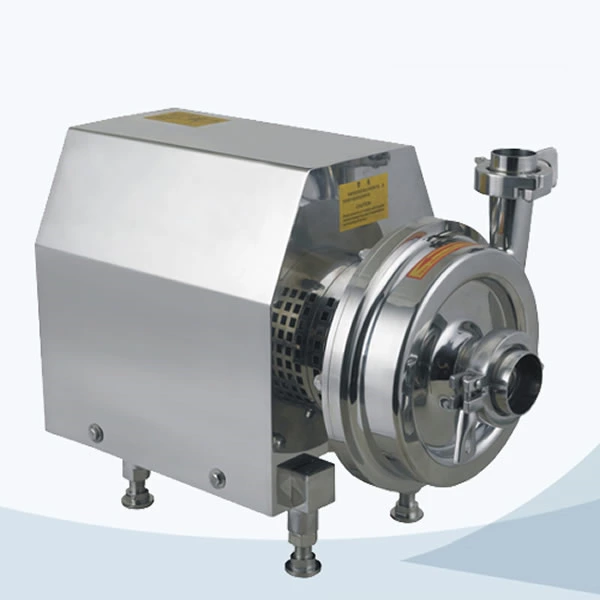

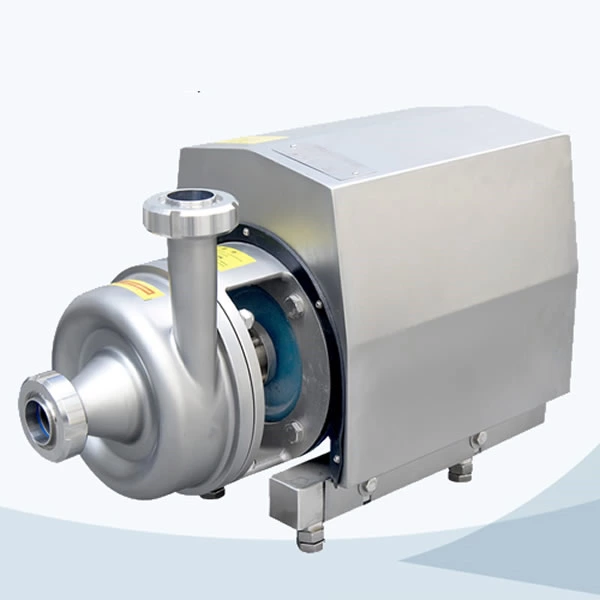

Sanitary square close type centrifugal pump

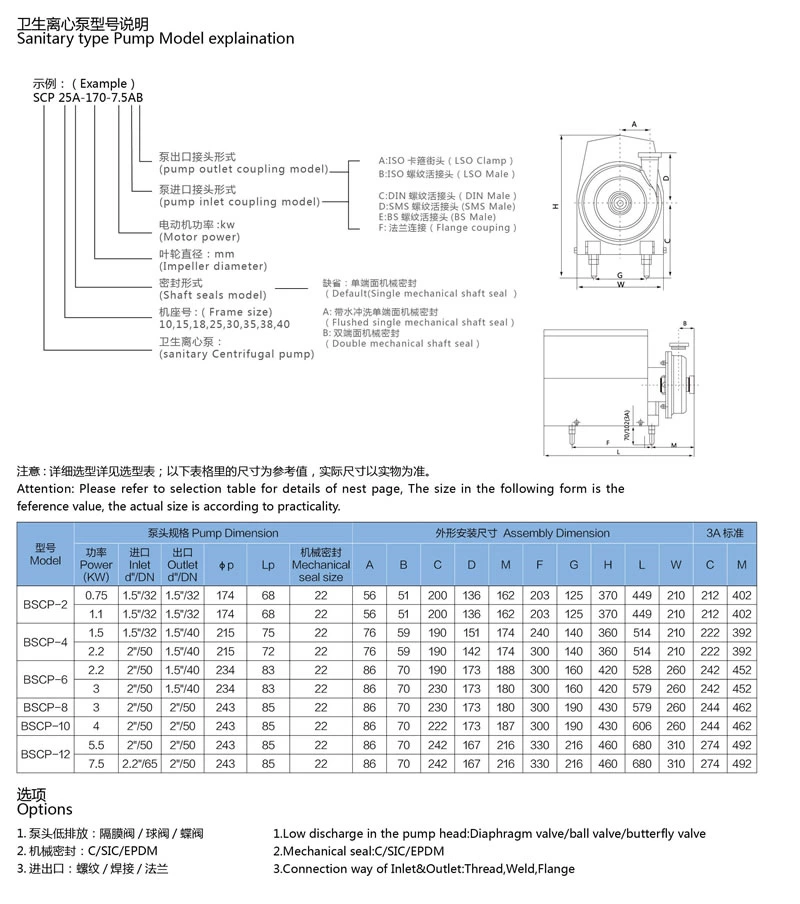

Model:
BSCP

Our centrifugal pump is a sanitary pump that meets the highest sanitary requirements for use in the food-processing and pharmaceutical, dairy, milk, bear industries.

Some of its uses include processes in the brewing, dairy and beverage industries, and with the appropriate options it can also be used in complex applications such as Evaporators, concentrators, distillation towers, decanting of syrups, and purified-water loops in the pharmaceutical industry.

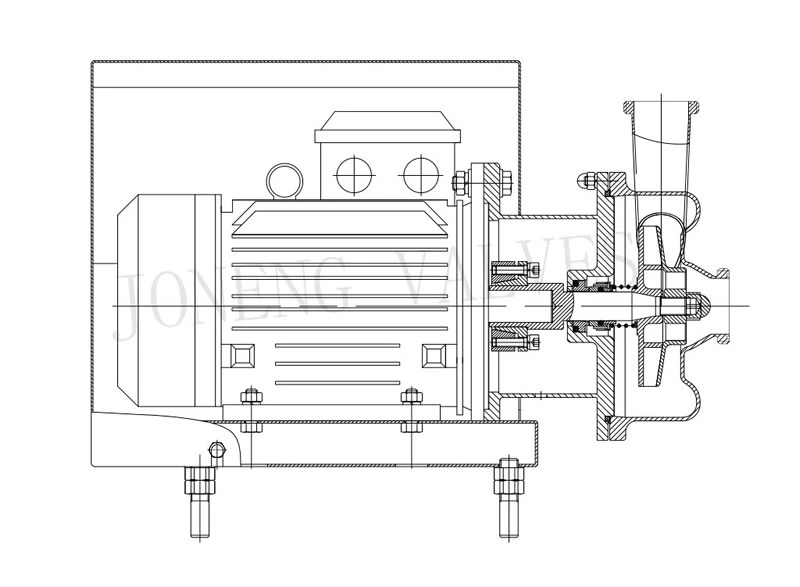

Housed inside the casing, the impeller rotates in conjunction with the pump shaft. With this arrangement, the impeller blades convey energy to the fluid in the form of Kinetic energy and pressure energy.

Due to the special design of the pump casing and impeller, the centrifugal pump has much higher pressure than standard centrifugal pump.

Features:

  • High efficiency
  • Low maintenance
  • Transfer the liquid softly
  • Complete CIP ability
  • Low NPSH (net positive suction head)
  • Long service seal
  • Reliability and durability
  • Easy to replace the mechanical seals

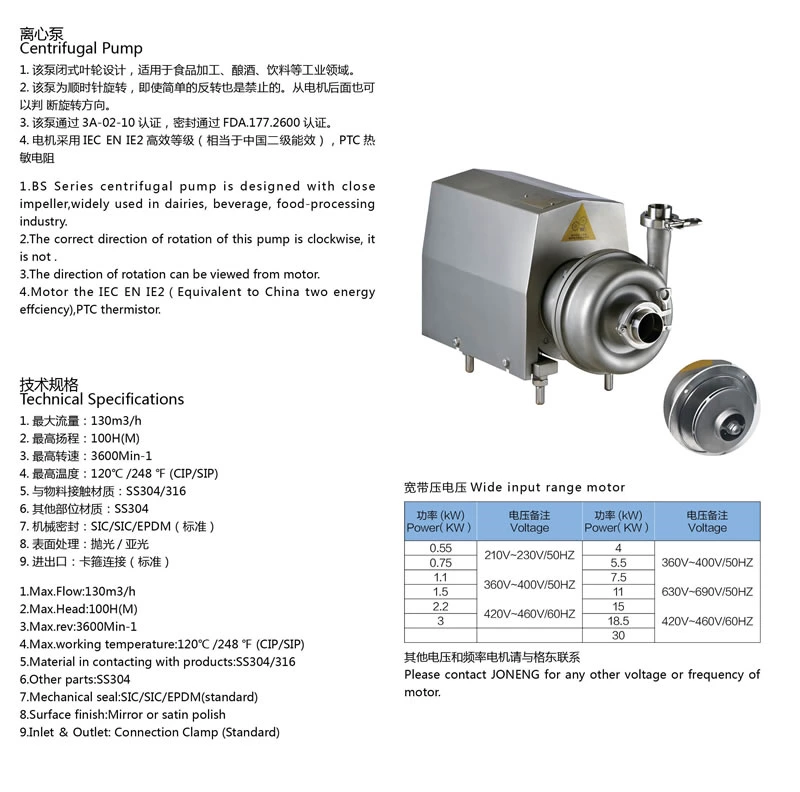

  • Motor: 0.55-22Kw
  • Impeller: Open type
  • Rotating speed: 2900rpm(50Hz)or 3600rpm(60Hz)
  • Flow: 1.5-120/h
  • Lift: 0-75m
  • MAX pressure: 7Bar
  • MAX temperature: 120degree
  • Connection: Clamp, Thread, Flange, Welding
  • Standard: DIN, SMS, 3A, ISO, IDF, RJT

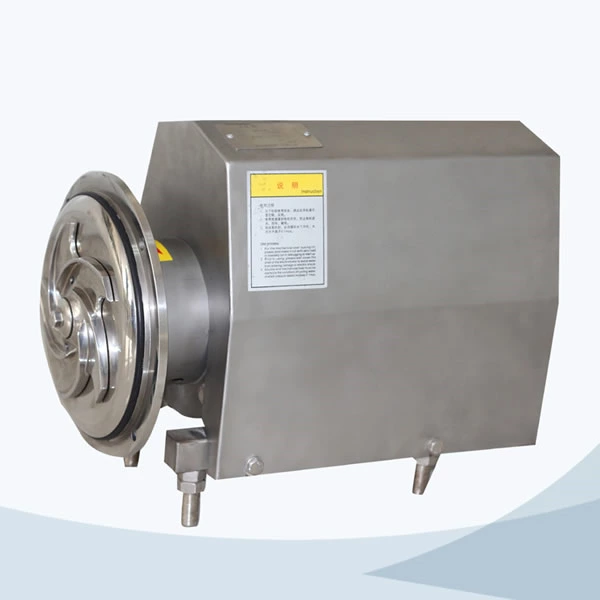

We have open impeller and close impeller types. And according to customers' requirements, we design movable type and explosion type.

Design and Standard:

  • Design based on 3A hygienic standard
  • Adjustable stainless steel leg
  • Mechanical seal: Single mechanical seal and double mechanical seal

Material:

  • Motor housing: Cold rolled stainless steel plate
  • Investment casting impeller: AISI 304/316L
  • Contact parts with material: Viton, EPDM
  • Gasket: SSC-Sic/EPDM
  • Internal surface: Ra≤ 0.8um
  • External surface: Mirror polish

Sanitary square close type centrifugal pump

Sanitary square close type centrifugal pump

Sanitary square close type centrifugal pump
