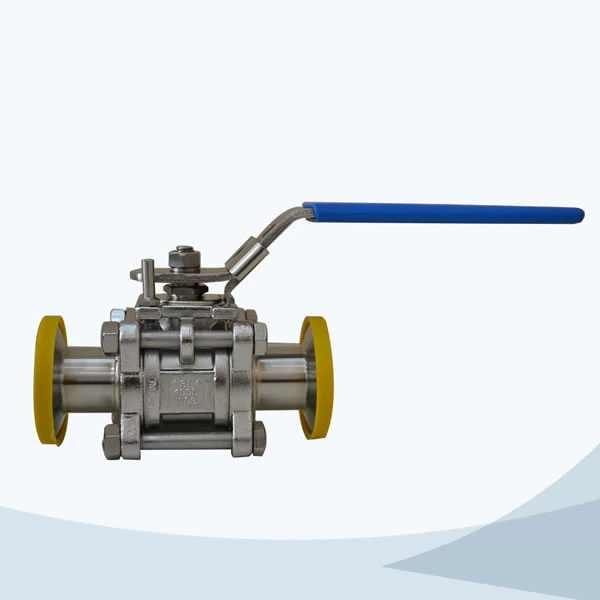

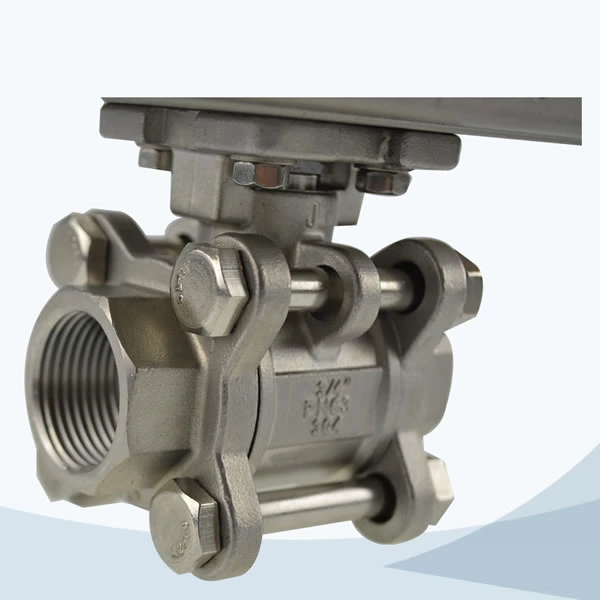

Stainless Steel Sanitary Grade Pneumatic Threaded 3 Piece Ball Valve

Model:
JN-BLV2009
Code:
8481804090

Features:

  • All line design,in order to reduce pipeline rapids and pressure drop
  • High precise casting body
  • Pressure: 10bar
  • Temperature: -60~ 180 degree
  • Body type: Two way, Three way type( L type and T type)
  • Working mode: Manual type, electrical type, pneumatic type
  • Gaskets: PTFE,EPDM
  • Easy cleaning, easy maintenance, light weight,
  • Connection end: Weld, tri-clamped, union, flange,male threading, female threading
  • Standard: DIN, SMS, ISO, 3A, IDF
  • Material: SS304, SS316L
  • Inside surface finish: Ra0.4
  • Outside surface finish: Ra 0.6
  • Size: DN15-DN100 , 1/2”-4”
  • Application: Food, beverage, dairy, pharmacy, chemical or any food processing industries

Application:

This type of ball valve series is a kind of sanitary valve which used to control the material transfer. It is widely used in food,beverage processing, pharmaceutical and chemical industry area.

Working Principle:

With the 90° rotary handle, drive the precise manufacturing ball body which with through cavity, turn on or off ,so that can control the medium flow.

Material:

  • Steel part: 304(1 .4301)/316L (1.4404)
  • Gasket: PTFE

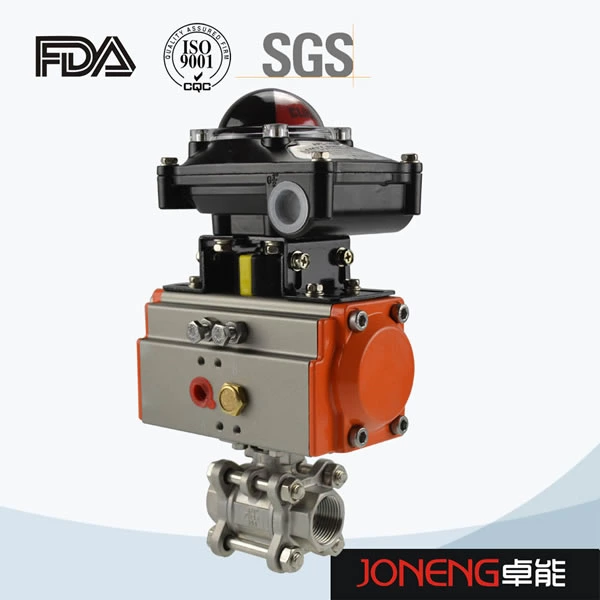

Stainless Steel Sanitary Grade Pneumatic Threaded 3 Piece Ball Valve

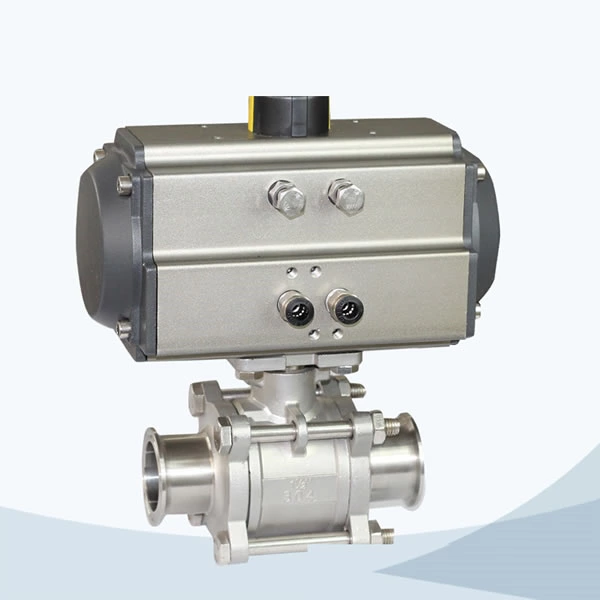

Stainless Steel Sanitary Grade Pneumatic Threaded 3 Piece Ball Valve
