Features:
- The full-bore valve chamber minimizes resistance to fluid flow.
- Suitable for handling viscous liquids or liquids containing particles.
- Maintenance-free
- Low operating torque
- Compact and lightweight
- Precision-cast body
- Pressure: 10bar
- Temperature: -60~180 degrees
- Body configurations: two-way and three-way (L-type and T-type)
- Operation: manual, electric or pneumatic
- Gaskets: PTFE and EPDM
- Easy to clean and maintain; lightweight
- End connections: welded, tri-clamp, union, flanged, male threaded or female threaded
- Standards: DIN, SMS, ISO, 3A, IDF
- Material: SS304, SS316L
- Internal surface finish: Ra0.4
- External surface finish: Ra 0.6

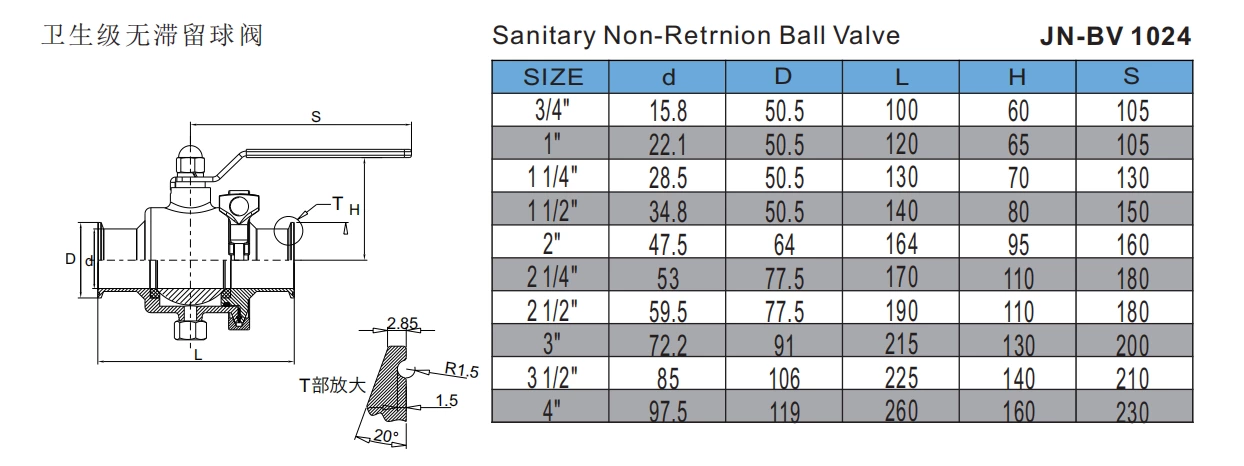

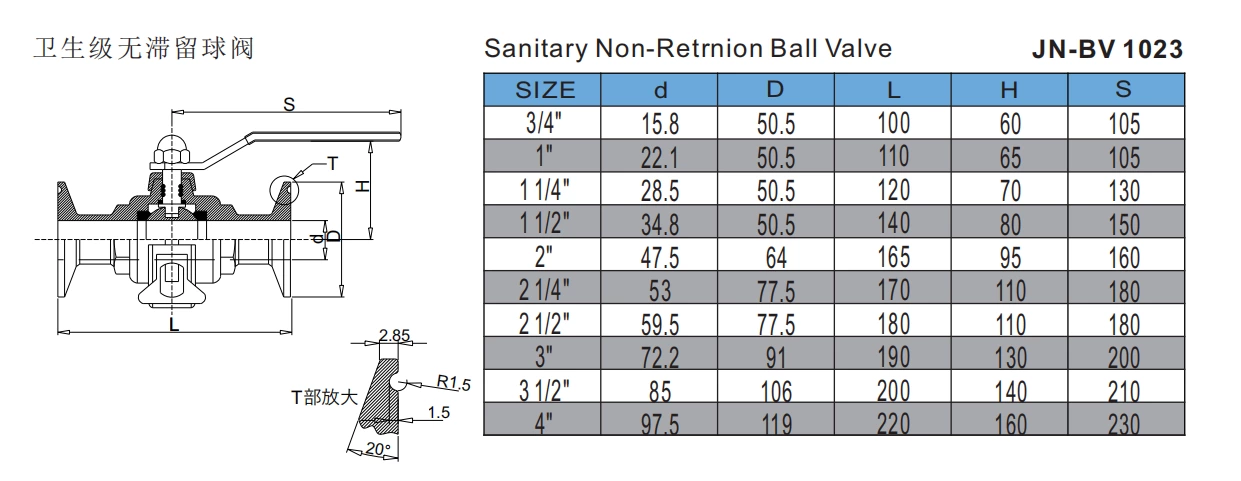

- Size: DN15-DN100, 1/2”-4”
- Application: food, beverage, dairy, pharmaceutical, chemical and food processing industries
Application
Used in beverage, brewing, oil refining, cosmetics and chemical industries.
Design and features
- Maintenance-free
- Compact and portable
- Low operating torque
- PTFE gasket complies with FDA 177.2600
- The hand lever can be mounted on the side of the valve body regardless of the flow direction.
- End connections: threaded, clamped, welded or flanged; DIN, SMS, RJT and FIL.
- Compatible with pneumatic and electric actuators.
- Product-contact parts are made of AISI 304/316L. Other parts are made of AISI 304.

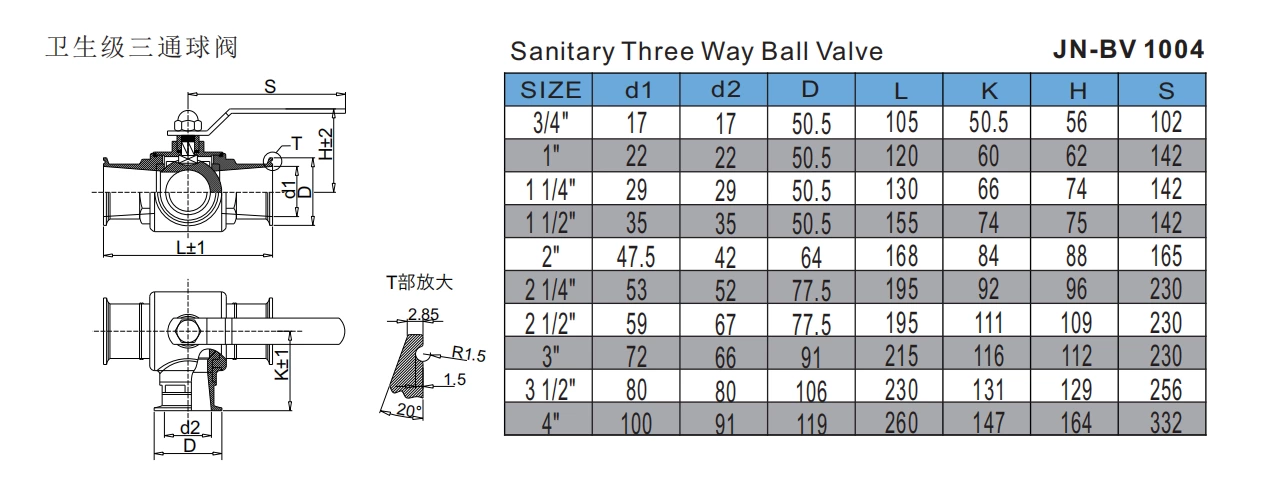

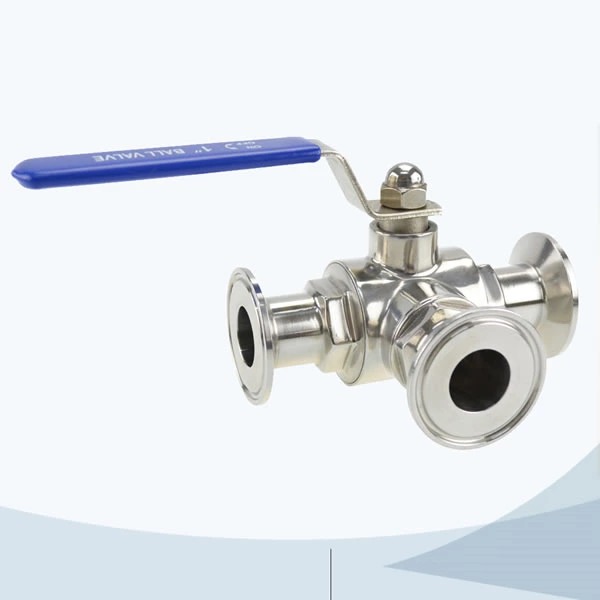

- Valve types: one-way ball valves and three-piece ball valves. Three-way ball valves
- Flow passage configurations: T-type, L-type and straight-through.
- Material: AISI 304,316L
