stainless steel food grade aseptic screwed union

Model:
JN-UN7002
Code:
730729000

RJT union is also called BSM union, CIP unions.

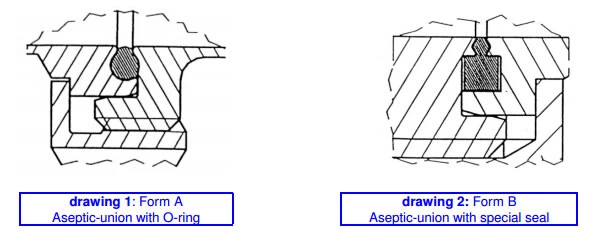

Both O ring Joint type and stepped RJT seal is available.

Due to the small crevice, the RJT unions can be widely used for CIP applications.

We provide the sanitary RJT unions as followings

  • Size: 1/2"-4"
  • Inner Ra 0.6, External Ra 0.8
  • Grade: SS304, SS316L
  • Inner Ra0.4 to meet food requirement; surface is smooth and elegant
  • Gaskets are compliant with FDA
  • Made from forging
  • Gasket: EPDM, SILICONE, PFTE, NBR.
  • we use first class LG ZAMAK CNC to machining. Therefor our CNC parts are exactly correct size without any human error.

For unions, After products are finished, we recheck the roundness, thickness uniformity, Ra value, sand hole, surface uniformity. So after these inspection, the fittings are of excellent quality.

Our sanitary unions are widely used for food, beverage, Dairy , bio-tech, pharmacy industries.

stainless steel food grade aseptic screwed union

stainless steel food grade aseptic screwed union

stainless steel food grade aseptic screwed union

stainless steel food grade aseptic screwed union
