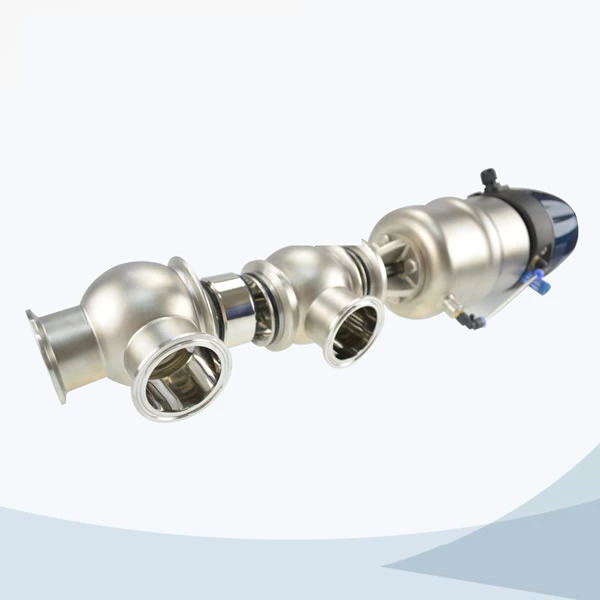

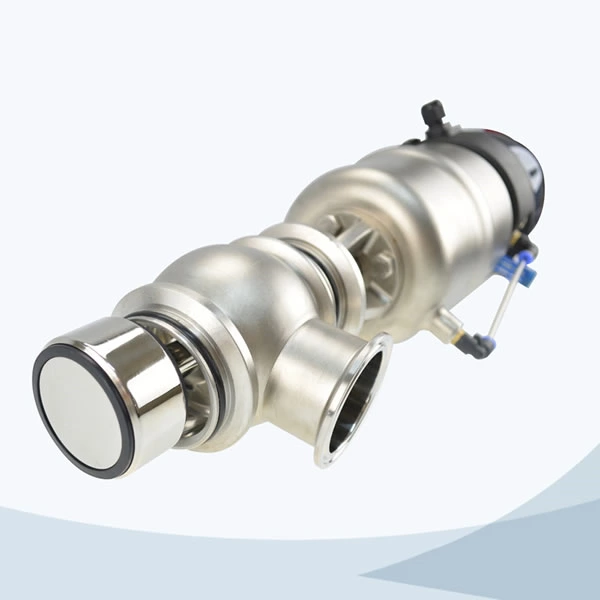

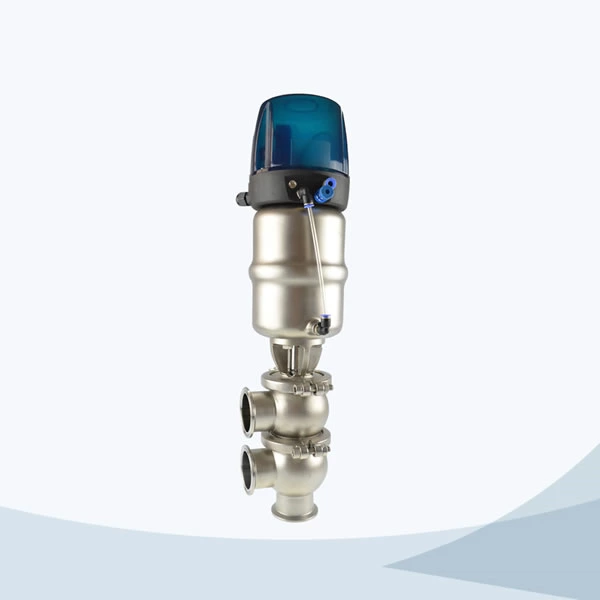

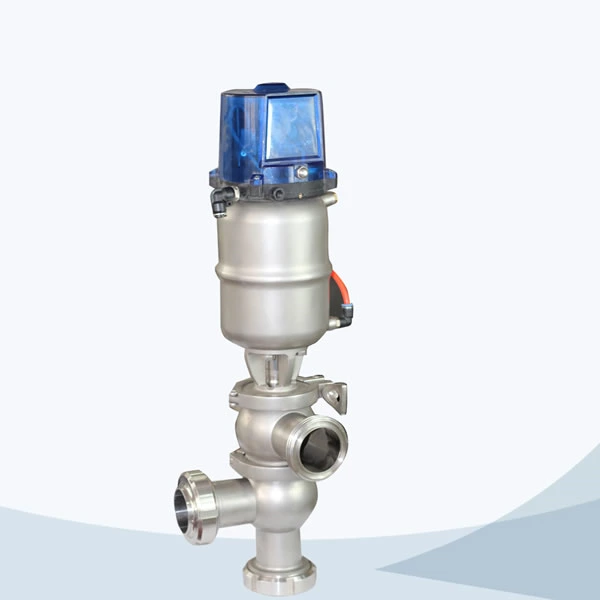

stainless steel food processing pneumatic flow change over valve with control cap

Model:
JN-FDV1001
Code:
8481804090

The valve is used to stop the liquid or change the flow direction in the system.

Features:

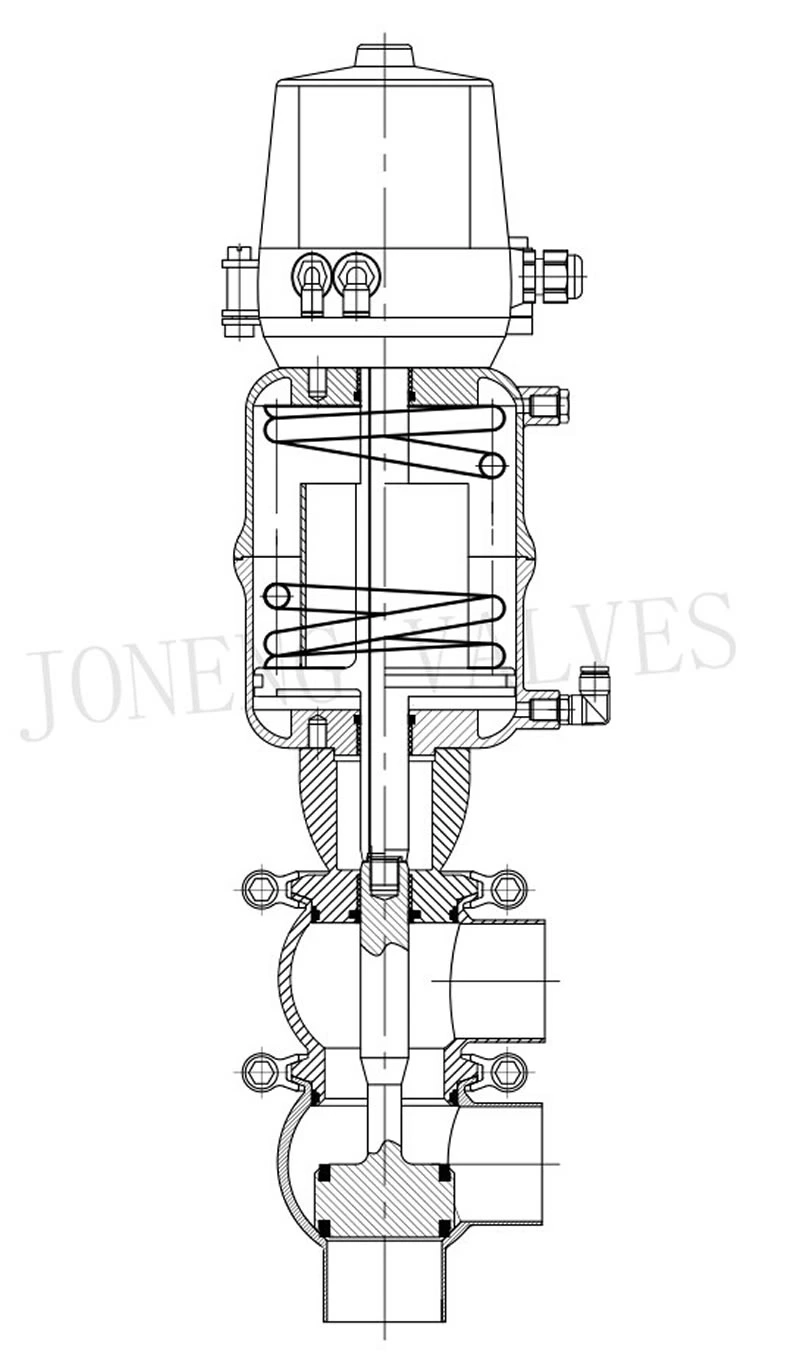

  • Open support bracket which separates the actuator and valve body, the design makes shaft seal checking easily

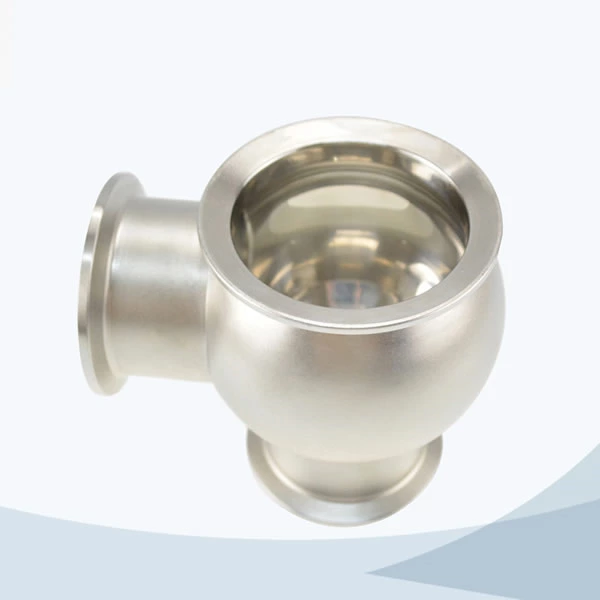

  • Spherical valve body assures ideal fluidity
  • Dealing material softly
  • Ultra-thick spherical design avoid the deshape caused from heating stress
  • All the contacting parts can be cleaned together or alone
  • Temperature: -10 degree to 120 degree
  • High precise casting body
  • Pressure: 10bar
  • Working mode: Manual, pneumatic type
  • Gasket: EPDM, silicone
  • Easy cleaning , easy maintenance
  • Valve body type: 20, 30, 21, 22, 31, 32 type
  • Connection mode: Clamped, welded, etc

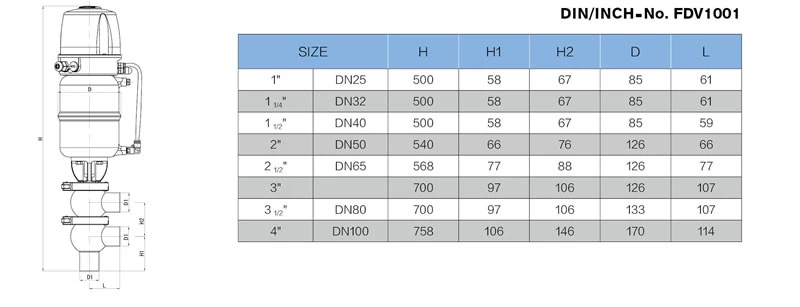

  • Specification: 1"-4", DN25-DN100
  • Material quality: SUS304, SUS316L
  • Surface: Mirror polishing, or sand blasting type
  • inner surface: 0.4Ra
  • Outer surface : 0.8Ra
  • Application: Food, beverage, dairy, pharmacy, chemical or any food processing industries

stainless steel food processing pneumatic flow change over valve with control cap

stainless steel food processing pneumatic flow change over valve with control cap

stainless steel food processing pneumatic flow change over valve with control cap
