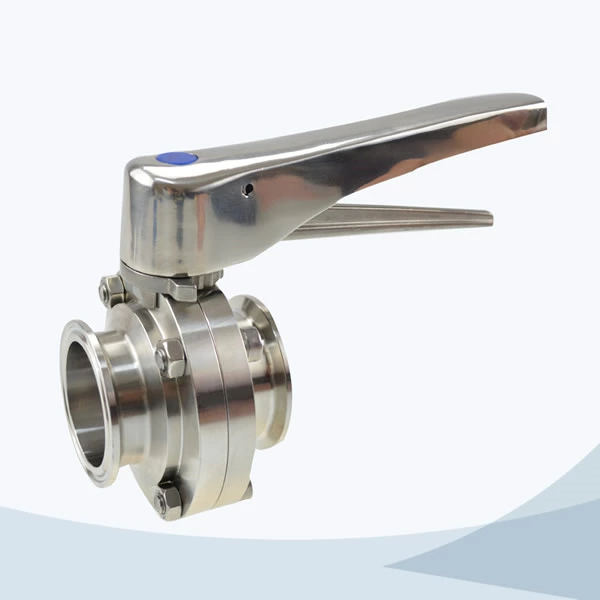

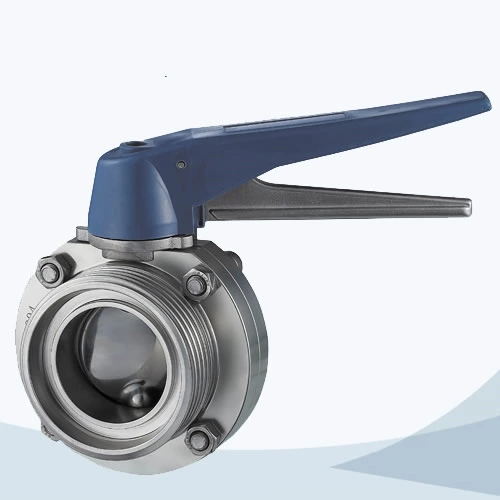

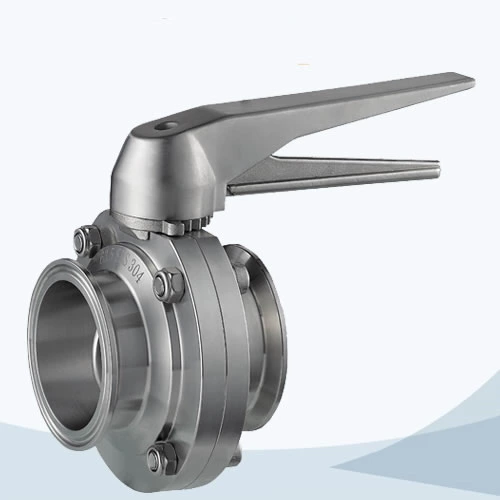

Stainless Steel Food Equipment Clamped Gripper Butterfly Valve With Ss Handle

Model:
JN-BV1008
Code:
8481804090

Features:

  • Better acid proof, alkali proof and high temperature
  • Temperature: -10degree~~120 degree
  • More than thirteen thousand safety test
  • Outside surface finish: Ra 1.2
  • Special gasket design,  fluid free of residue

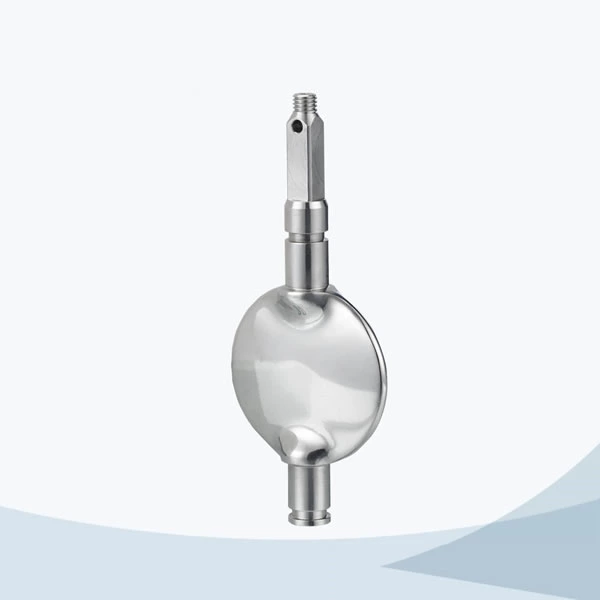

  • Valve disc is made from forging.
  • Valve body is made from forging.

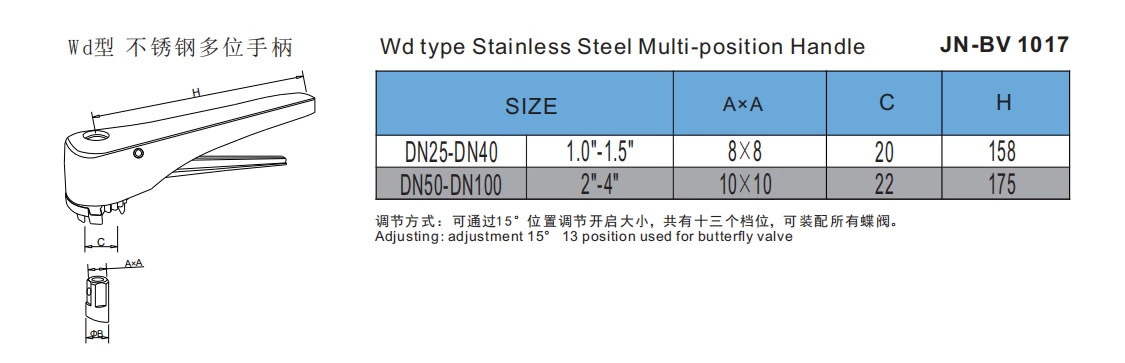

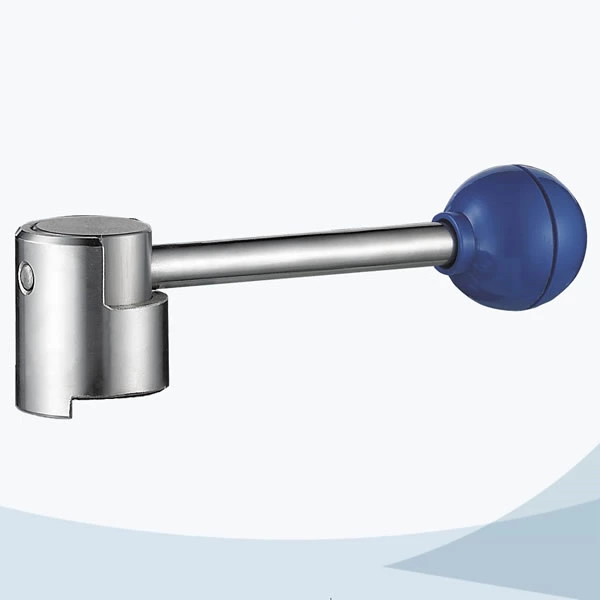

  • Manual handle: pull handle, plastic gripper handle or stainless steel gripper handle
  • Gasket: EPDM, silicone or Viton
  • All gaskets are FDA approved
  • Max. Pressure: 16BAR for welding connections; 10BAR for other connections
  • Min. Pressure:0.2BAR
  • Compact design, easy maintenance and high torque
  • Connection end: Weld, tri-clamped, union, flange,male threading, female threading

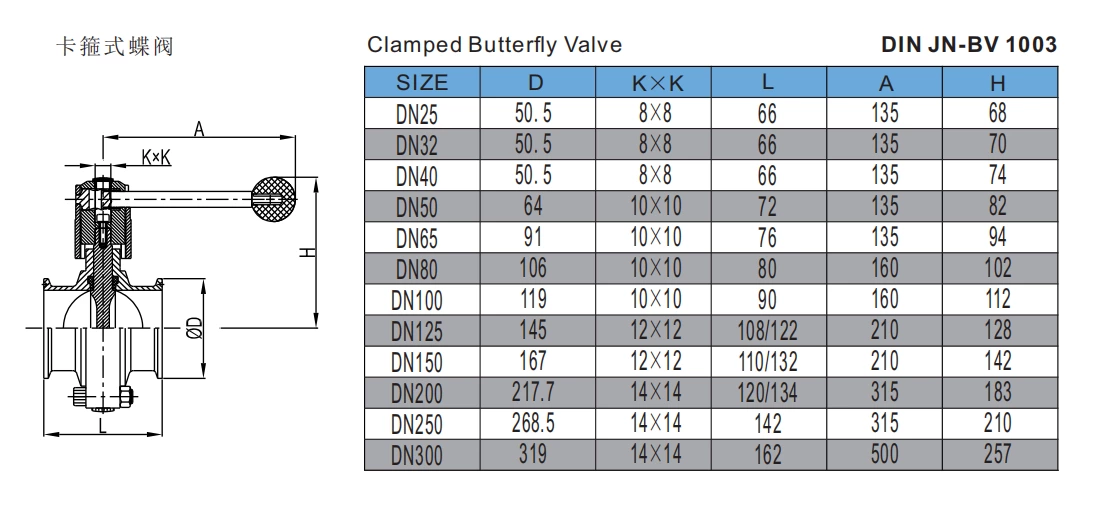

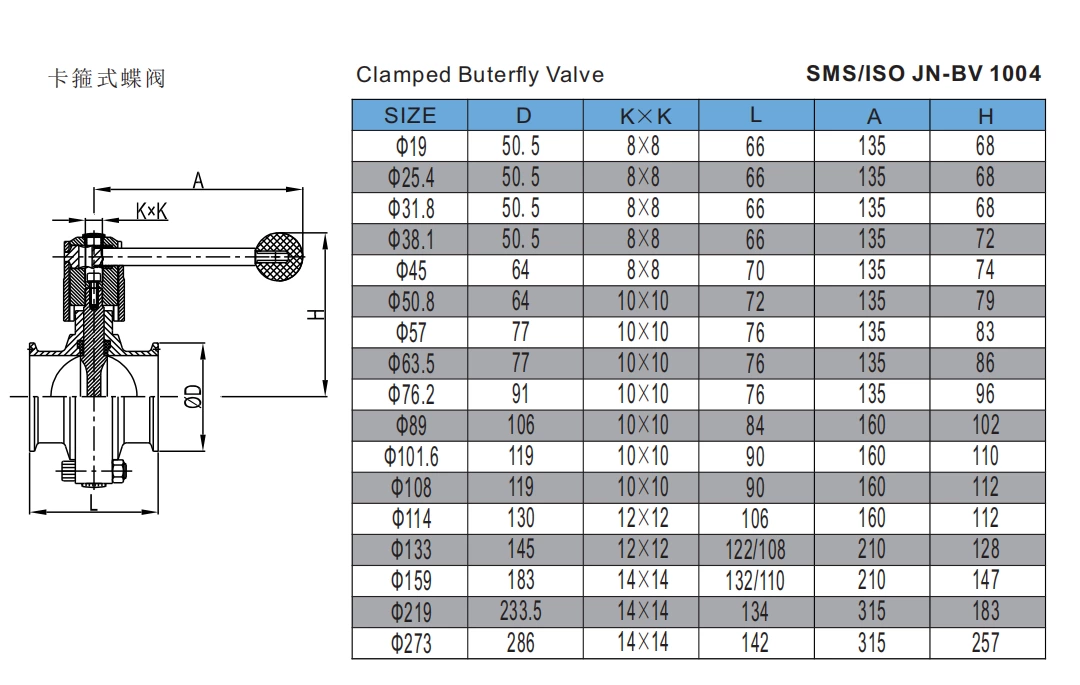

  • Standard: DIN, SMS, ISO, 3A, IDF
  • Material: SS304, SS316L
  • Inside surface finish: Ra0.4
  • Size: DN20-DN300 ,  3/4"-10"
  • Standard : pull handle normally with 3position ( 4position can be customerized )
  • Gripper handle normally with 13 position.

Application

  • Food, beverage, dairy, pharmacy, chemical or any food processing industries
  • Buttertly valves, no matter manually or automatically, can be used in most fluid product
    applications in the food-processing, pharmaceutical and chemical industries.

Operating Principles

  • The butterfly valves can be operated automatically through actuator or manually with the handle.
  • The handle blocks the valve in the "open" or "closed" position, certainly there are the other position available.
  • The actuator push piston of axial movement into 90 degree so that it controls butterly valve.

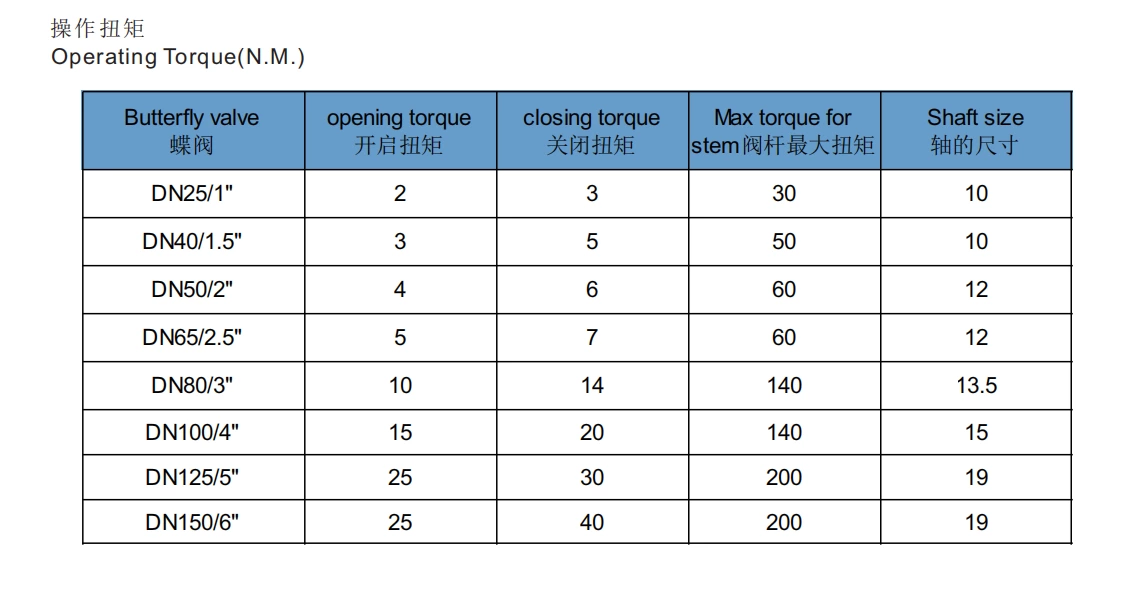

Technical specifications

Technical specifications

Design and features

  • Compact and robust design
  • Available in sizes D N25/1" to ND 250/10。
  • Manual handle, pneumatic actuator and electric actuator can be exchangeable with each other
  • Low pressure losses
  • The valve body can be changeable with any
  • kind of connection

Materials

  • Butterfly plate: AISI316L/304(forged)
  • Valve body: AISI316L /304(forged)
  • Washer and gasket: EPDM which conforms to FDA 177.2600
  • Handle: AISI304/PP
  • Surface finishing: Ra=0.8
